Fuel Pump Control Unit: Service and Repair
FUEL PUMP CONTROL UNITREMOVAL 1.
Disconnect the ground cable from battery.
2.
Remove the rear quarter trim (right side).
3.

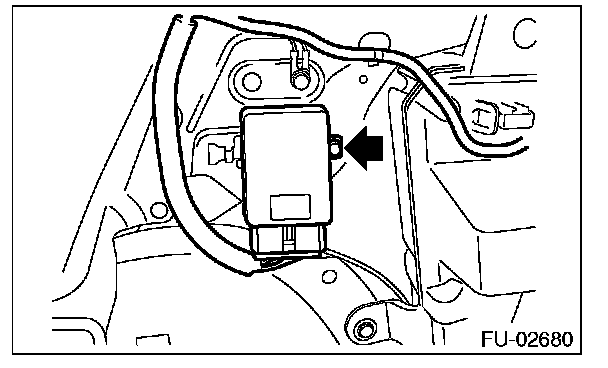

Disconnect the connector from
fuel pump control unit.
4.
Remove the
fuel pump control unit.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque: 13 N.m (1.3 kgf-m, 9.6 ft-lb)
