Read Current Data

READ CURRENT DATA

1) On <
> display, select {Each System Check}.
2) On <> display, select {Transmission Control System}.
3) After transmission type information pops up, select [OK].
4) On <> display, select {Current Data Display & Save}.
5) On <> display, select {Normal sampling}.
6) Using the scroll key, scroll the display screen up or down until the desired data is shown.

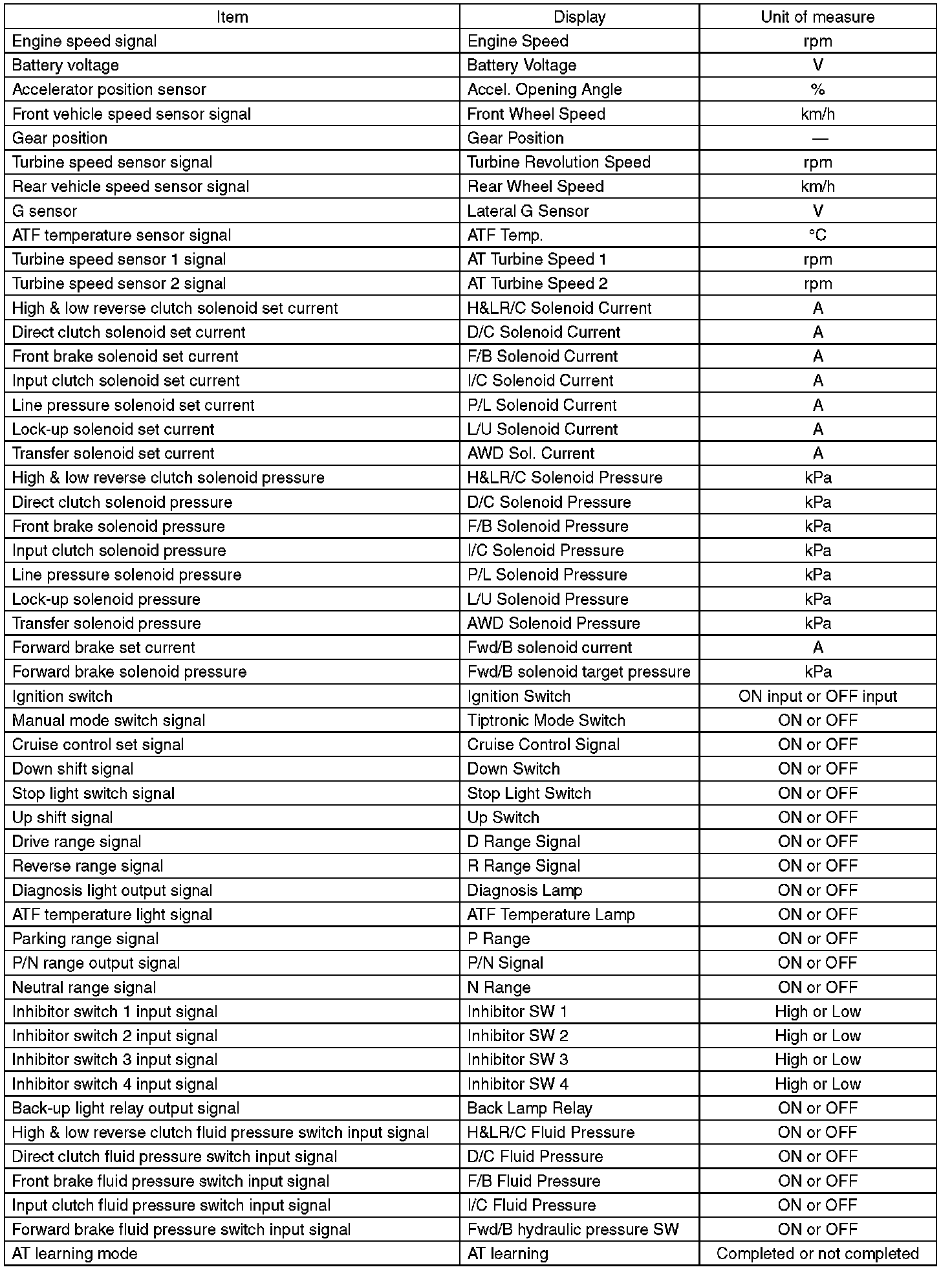

^ A list of the support data is shown in the following table.





NOTE:
For details concerning the operation procedure, refer to "PC application help for Subaru Select Monitor".
