Removal
Front Vehicle Speed SensorREMOVAL
1) Remove the transmission assembly from the vehicle.

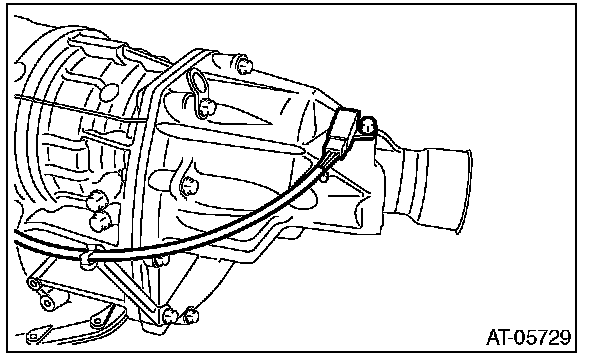

2) Disconnect the rear vehicle speed sensor connector.
NOTE:
Secure the transmission harness to the transmission body using wire etc.

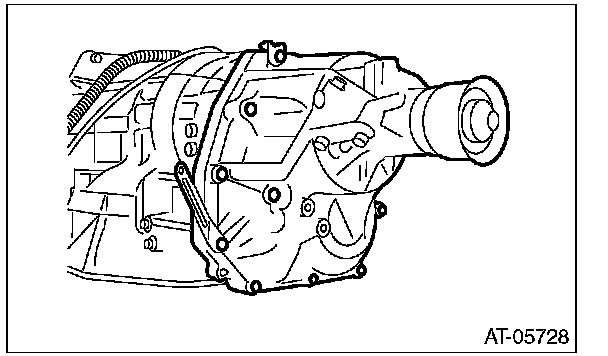

3) Remove the extension case.
4) Remove the center differential carrier.
5) Lay along the transmission case, and then remove the oil pan.
6) Remove the old gasket on the oil pan and transmission case completely.
7) Disconnect the front vehicle speed sensor connector.

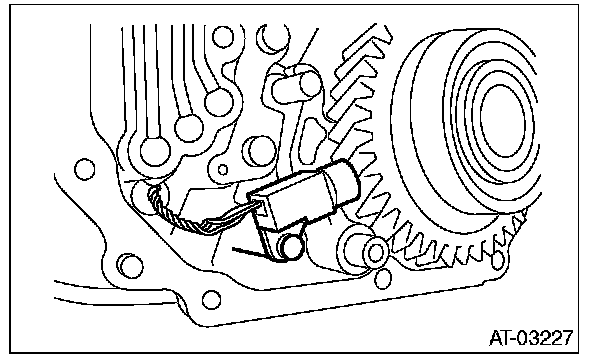

8) Remove the front vehicle speed sensor securing bolt.
9) Remove the front vehicle speed sensor through the hole of AT transmission main case.
