Fluid Replacement
Differential Gear OilREPLACEMENT
1) Lift up the vehicle.

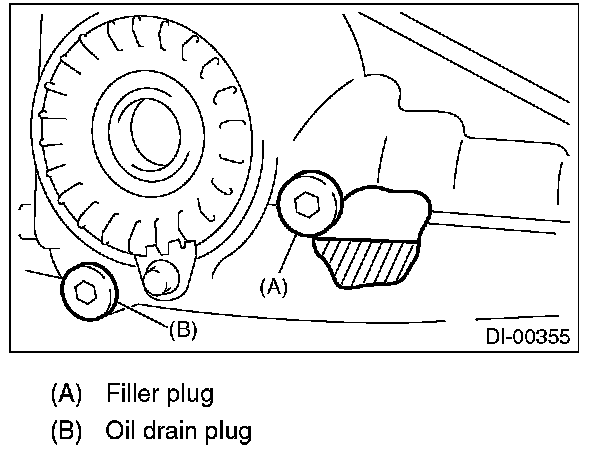

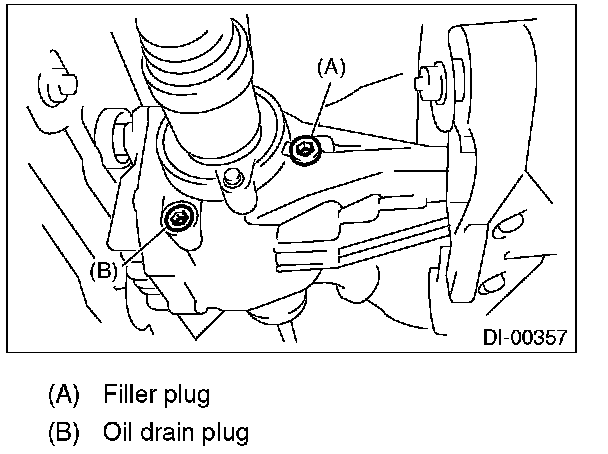

2) Remove the oil drain plug and filler plug, and drain the gear oil.
CAUTION:
Be careful not to burn your hands, because gear oil becomes extremely hot after running.
3) Tighten the oil drain plug.
NOTE:
Use a new gasket.
Tightening torque:
50 Nm (5.1 kgf-m, 36.9 ft-lb)
4) Fill the differential carrier with gear oil to the bottom of filler plug.
NOTE:
Carefully refill oil while watching the level. Excessive or insufficient oil must be avoided.
Oil capacity:
0.8 l (0.8 US qt, 0.7 Imp qt)
5) Install the filler plug.
NOTE:
Use a new gasket.
Tightening torque:
50 Nm (5.1 kgf-m, 36.9 ft-lb)
