Wiper Relay: Testing and Inspection

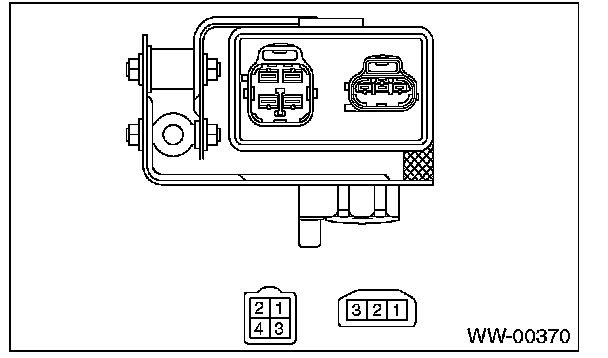

Wiper Relay UnitINSPECTION 1.
Inspect the continuity of 4 pole connector.
2.

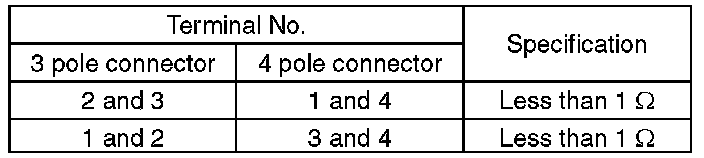

Connect the battery to the 3 pole connector and measure the continuity of 4 pole connector.
3.
When measurement value is different from the specification, replace the
wiper relay unit.
