EGR Troubleshooting Chart
EGR Troubleshooting Chart

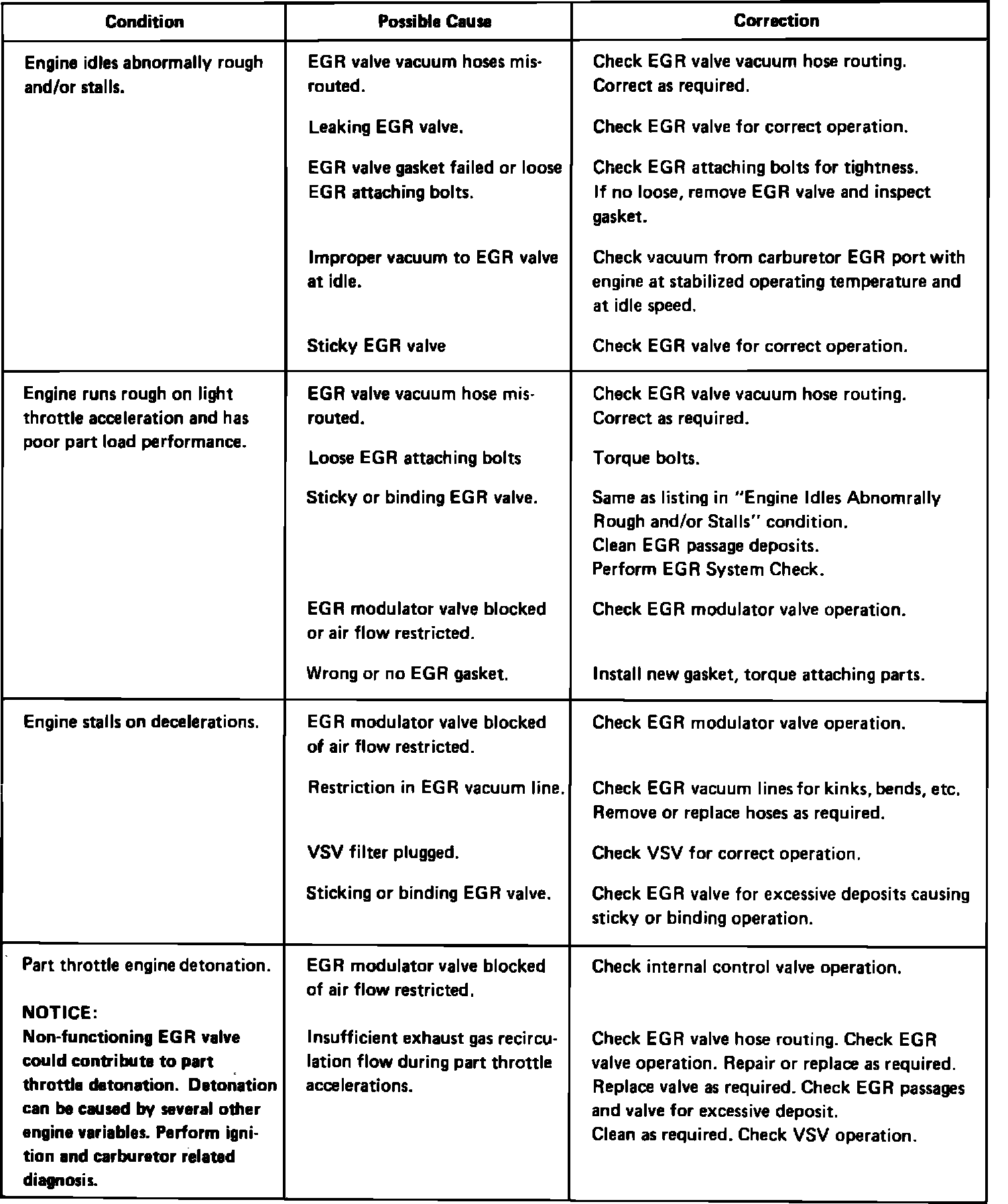

Fig. 6 EGR troubleshooting chart:
Fig. 6 EGR troubleshooting chart:
