Intake Air Duct: Service and Repair
REMOVAL
1. Disconnect negative cable at battery.

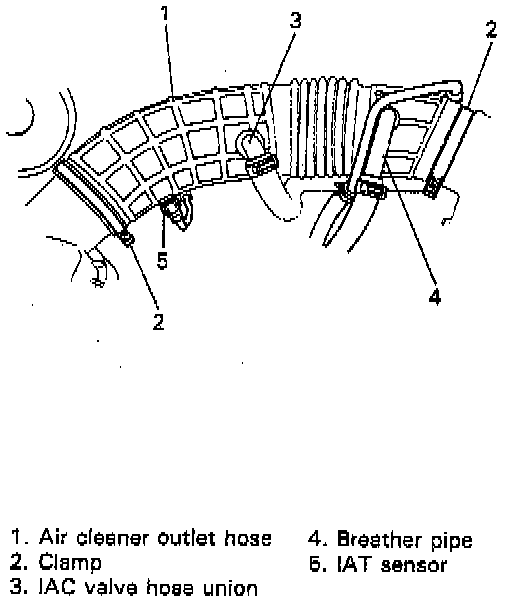

2. Disconnect IAC valve hose union and breather pipe from air cleaner outlet hose.
3. Disconnect IAT sensor wire at coupler.
4. Remove air intake pipe by loosing its clamps.
INSTALLATION
Reverse removal procedure for installation.
