Disassembly

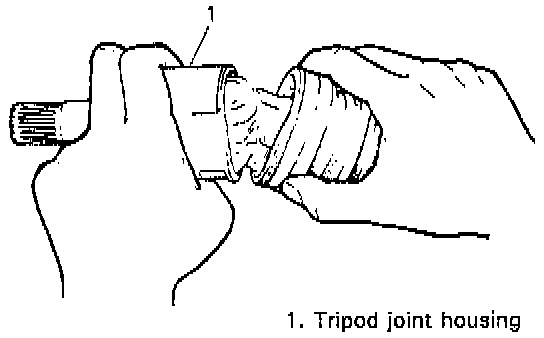

1. Remove tripod joint boot band, then take out tripod joint housing.

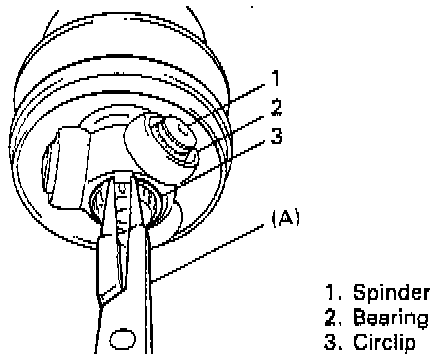

2. Remove grease from shaft and take off circlip by using Special Tool (A): 09900-06107, or equivalent, then pull out spider from shaft.

CAUTION: To prevent needle bearing of joint from being degreased, do not wash it if it is to be reused.

3. Remove boot band, then pull out differential side boot from shaft.
4. Undo band of dynamic damper, then pull out damper through shaft.
5. Undo boot bands of wheel side joint boot, then pull out boot through shaft.

CAUTION:
^ Disassembly of wheel side joint is not allowed. If noise or damage exists in it, replace it as assembly.
^ Do not disassemble tripod joint spider. If any malcondition is found in it, replace it as differential side joint assembly.
