Blower Motor Resistor: Service and Repair

Blower Motor Resistor

REMOVAL

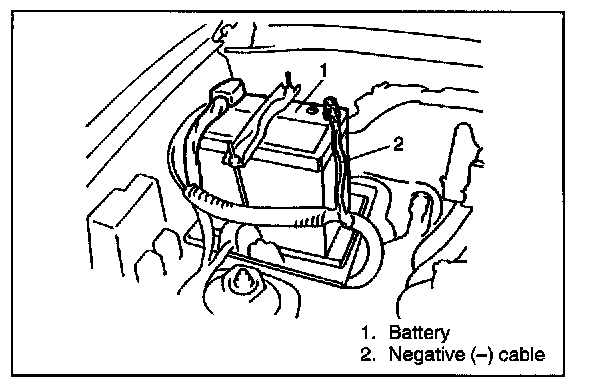

1. Disconnect negative (-) cable at battery.
2. Disable air bag system, if equipped.

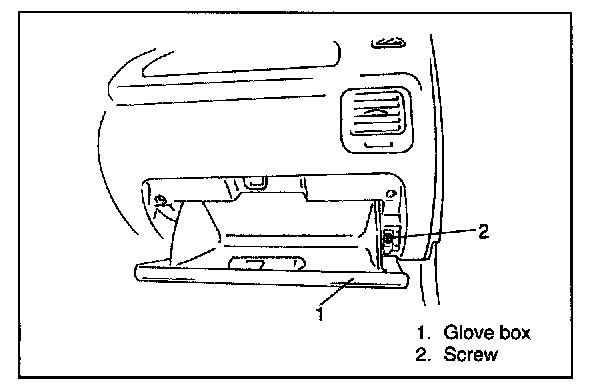

3. Open glove box, then remove screw.
4. Remove glove box.




5. Disconnect resistor coupler.

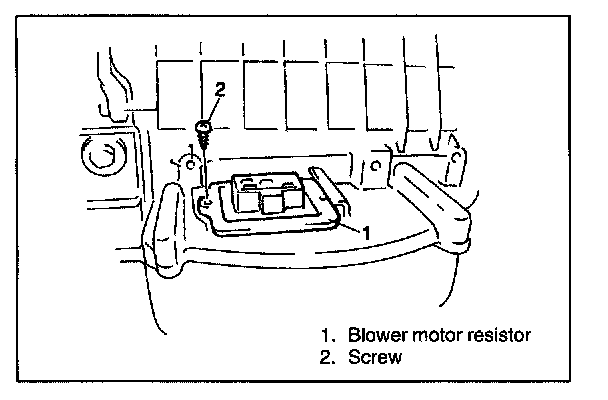

6. Remove heater blower resistor by loosening its fastening screw.

INSTALLATION
1. Install heater blower resistor with screws.
2. Enable air bag system, if equipped.
