Front Differential

GEAR OIL CHANGE

NOTE:
^ Hypoid gear oil must be used for differential.
^ It is highly recommended to use SAE 80W - 90 viscosity.

1. Before oil change or inspection, be sure to stop engine and lift up vehicle horizontally.





2. Check oil level and existence of leakage If leakage is found, correct its cause.

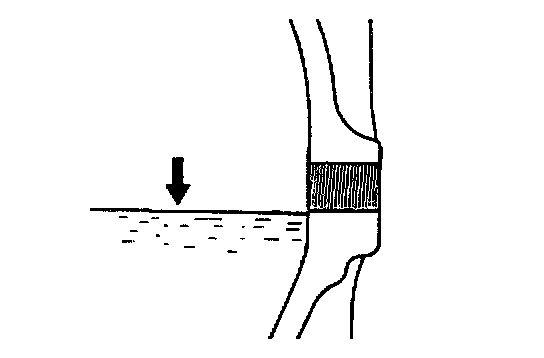

3. Drain old oil and pour proper amount of gear oil as specified below (roughly up to level hole)





4. Apply sealant to thread of drain plug (b) and torque plugs to specification
Sealant 99000-31110
Tightening Torque
(a): 40 Nm (4.0 kg-m, 29.0 ft. lbs.)
(b): 25 Nm (2.5 kg-m, 18.0 ft. lbs.)

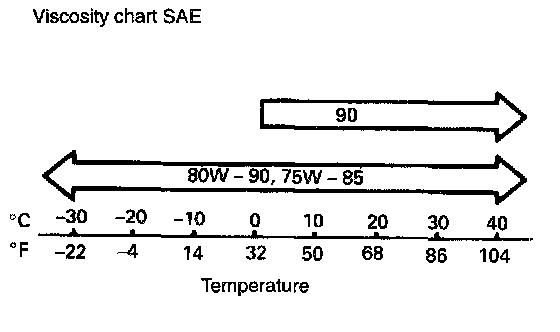

Specified gear oil: Hypoid gear oil API GL-5 SAE 75W - 85, 90 or 80W - 90, For oil viscosity, refer to chart.
Oil capacity: 1.0 liters (2.1/1.8 US/Imp. pt.)
