Extension Housing: Service and Repair

EXTENSION CASE (2WD VEHICLE)
REMOVAL
1. Disconnect battery negative cable from battery.
2. Lift up vehicle and drain A/T fluid.
3. Remove rear propeller shaft from extension case.





4. Disconnect speedometer cable from extension case.

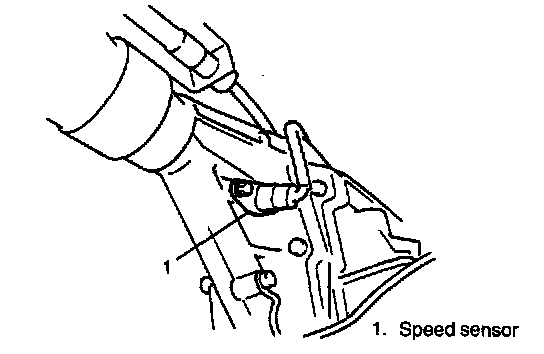

5. Disconnect speed sensor connector.

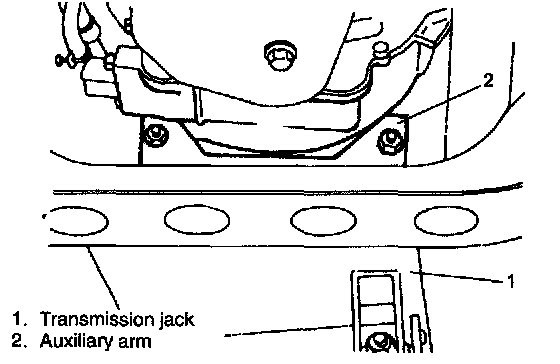

6. Support transmission with a transmission jack. Try not to apply jack against oil pan as much as possible.
7. Remove rear mounting.
8. Remove extension case from transmission.

INSTALLATION
1. Clean mating surfaces of transmission and extension case.

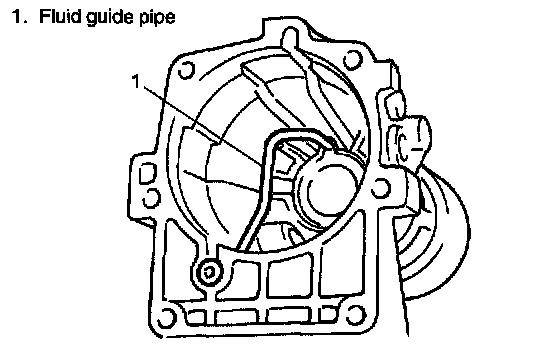

2. Confirm that fluid guide pipe is installed into extension case properly.

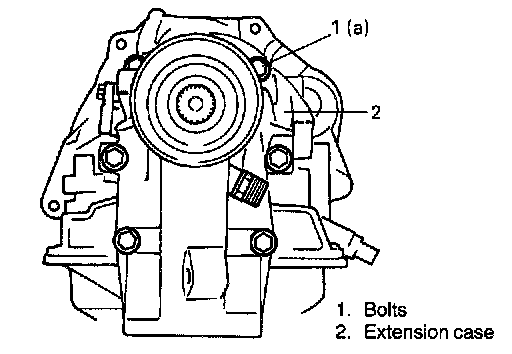

3. Install new gasket and extension case to transmission. Tighten bolts to specified torque.
Tightening Torque (a): 35 Nm (3.5 kg-m, 25.5 ft. lbs.)
4. Install rear mounting and tighten bolts to specified torque.
5. Connect speed sensor connector.
6. Connect speedometer cable to extension case.
7. Install rear propeller shaft.
8. Lower vehicle.
9. Add A/T fluid and check fluid level.
10. Connect battery negative cable to battery.
