Windshield Washer Pump: Testing and Inspection

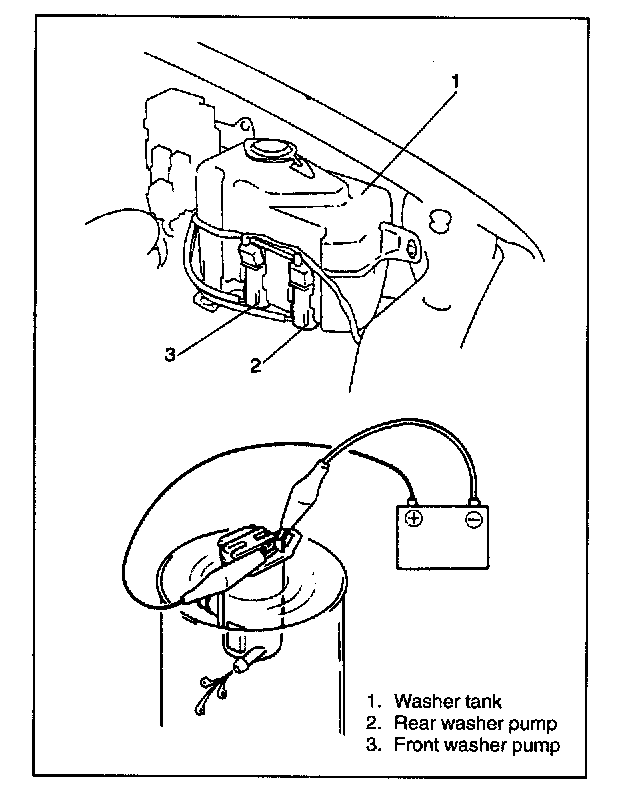

Connect battery (+) and (-) terminals to pump (+) and (-) terminals
respectively to check pumping rate.
Check for both front and rear washer pump.

Pumping Rate:
Front and Rear more than 1.0 l/min (2.1 US pt./min, 1.76 Imp pt./min).
