Front Bumper: Service and Repair

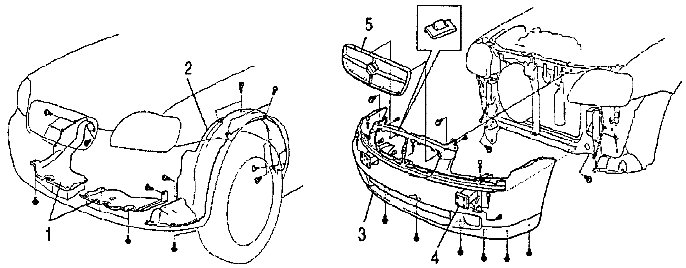

Front Bumper Removal And InstallationRemoval 1.
Remove engine under covers (1) and front
fender linings (2).
2.
Remove front
bumper (3) together with bumper member (4).
3.
Remove radiator grille (5) as necessary.
InstallationReverse removal procedure for installation.
