Electronic Brake Control Module: Service and Repair

REMOVAL

CAUTION: As ABS control module consists of precision parts, be careful not to expose it to excessive shock.

1. Disconnect negative cable from battery.

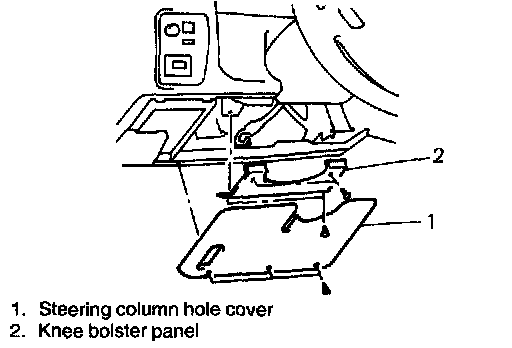

2. Remove steering column hole cover, knee bolster panel from instrument panel.
3. Remove release lever with latch release cable.
4. Remove junction box.
5. Disconnect ABS control module connectors.
6. Remove two bolts and take out ABS control module.

INSTALLATION
Install it by reversing removal procedure.
