Brake Pad: Testing and Inspection

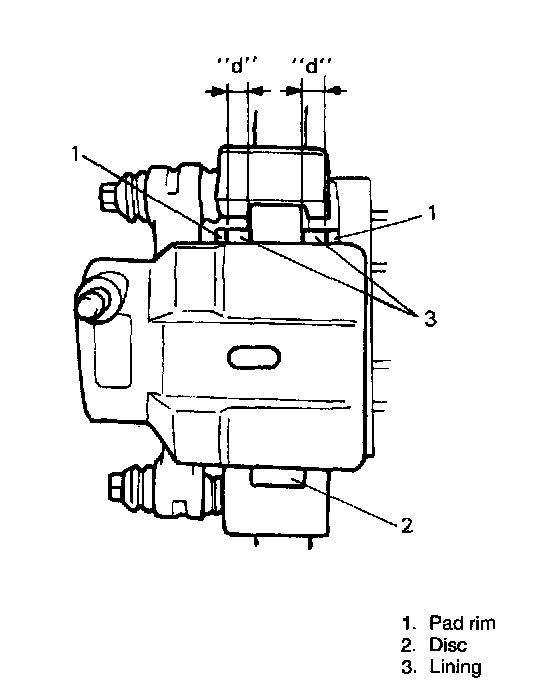

BRAKE PAD LINING CHECK Inspect pad linings periodically according to maintenance schedule whenever wheels are removed (for tire rotation or other reason). Take a look through hole of caliper and check lining thickness of inside pad.
Thickness "d"
Service Limit:
1.0 mm (0.04 inch) If one of
brake pad is worn to service limit, all linings must be replaced at the same time.
