Brake Switch (Cruise Control): Testing and Inspection

STOP LAMP SWITCH (WITH PEDAL POSITION SWITCH)

1. Disconnect negative cable from battery.
2. Disconnect stop lamp switch connector and remove stop lamp switch from pedal bracket.

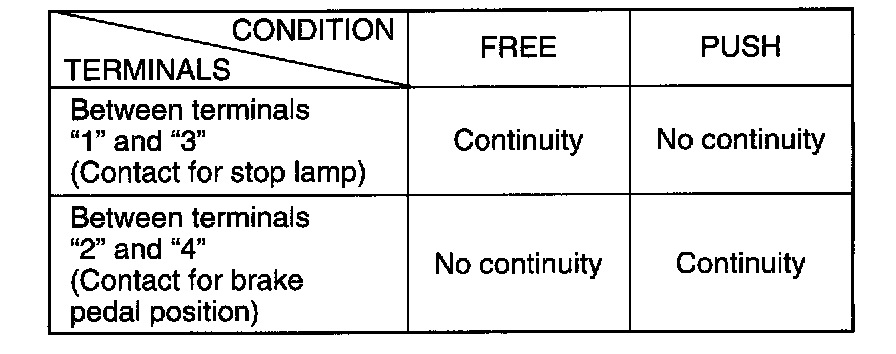

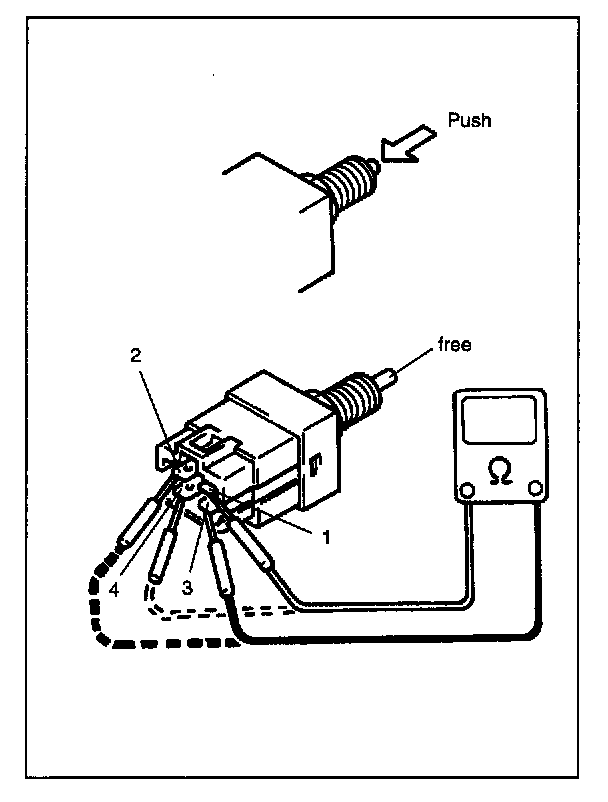

3. Check switch (two contacts) for resistance under each of following each conditions.
If check result is not satisfactory, replace stop lamp switch.
4. Install stop lamp switch and adjust its position.
