Clutch Switch: Service and Repair

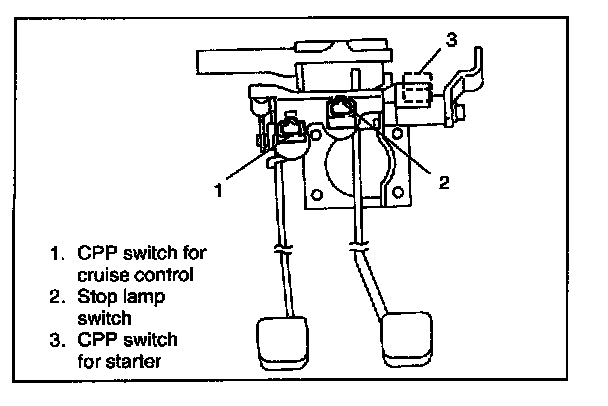

REMOVAL




1. Disconnect CPP switch connector with ignition switch OFF.
2. Remove CPP switch from pedal bracket.

INSTALLATION




1. Install CPP switch to pedal bracket.
2. With clutch pedal released, adjust switch position so that clearance between end of thread and clutch pedal bracket is within specification.

Clearance "a": 1 .5 - 2.0 mm (0.06 - 0.08 in)

3. Tighten lock nut to specified torque.

Tightening Torque
(a): 7.5 N.m (0.75 kg-m, 5.5 lb-ft)

4. Connect connector to CPP switch securely.
