Clutch Switch: Testing and Inspection

CLUTCH PEDAL POSITION (CPP) SWITCH (for cruise control)

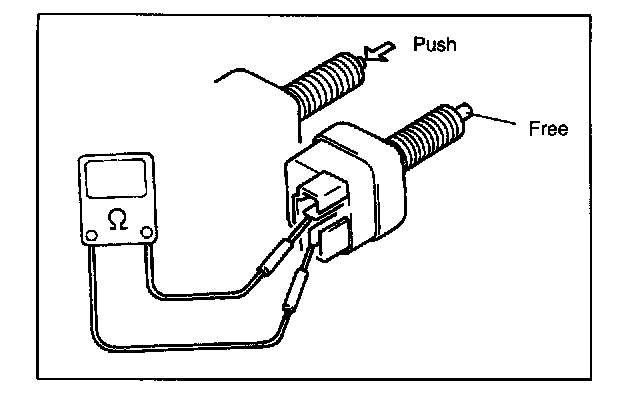

Check for resistance between terminals under each condition below.

When switch shaft is free : Continuity
When switch shaft is pushed : No continuity

If check result is not satisfactory, replace.
