Cruise Control Servo Cable: Service and Repair

REMOVAL

1. Disconnect cruise cable from cruise control arm and accelerator bracket.
2. Remove actuator cap and disconnect cruise cable from actuator.
3. Release cable from all clamps.
4. Remove cable from vehicle.

INSTALLATION

Install cruise cable by reversing removal procedure.

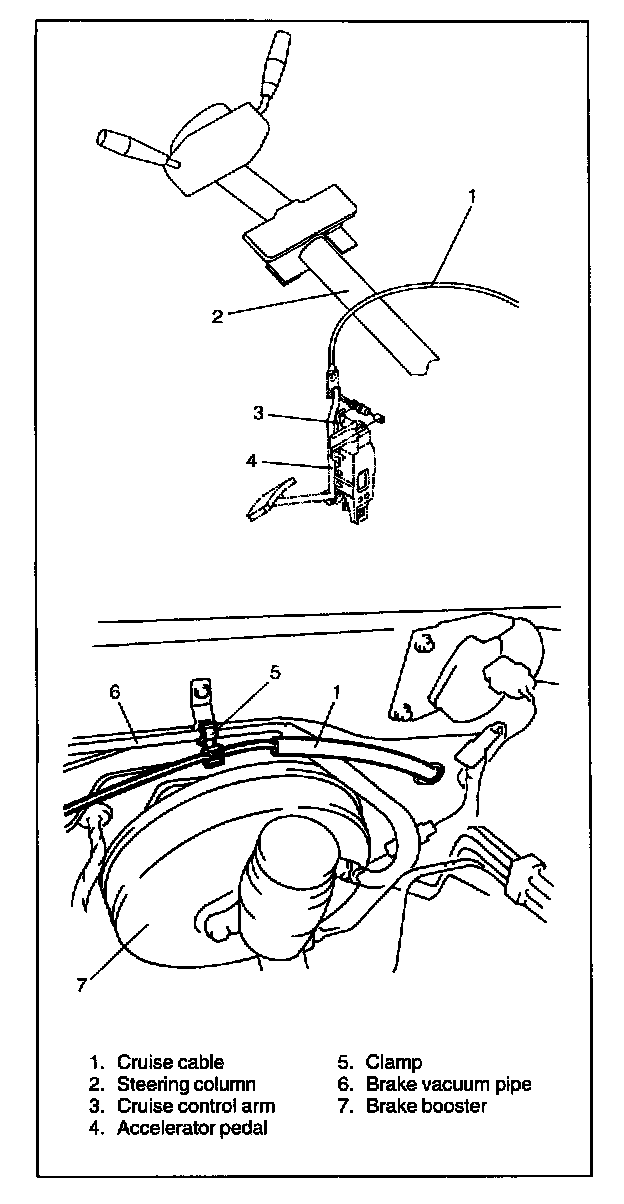

Refer to figure for proper clamp location and cable routing.
Adjust cable play to specification.
