Cruise Control Servo: Testing and Inspection

CRUISE CONTROL ACTUATOR ASSEMBLY (WITH CONTROL MODULE)

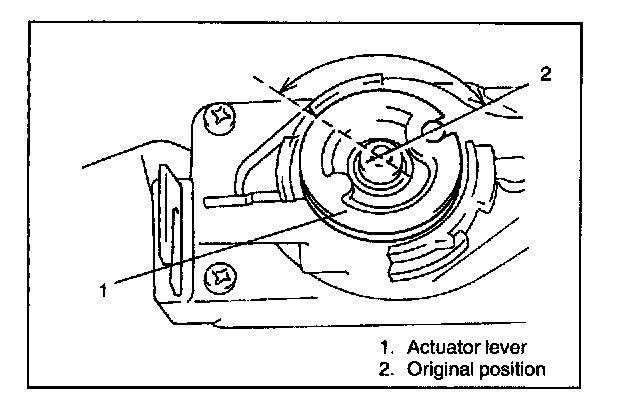

Move actuator lever by hand and check its operation as described below.
1. Actuator lever should not turn clockwise.
2. Actuator lever should turn smoothly by about 1/3 rotation counterclockwise and contact internal stopper.
3. When hand is taken off from actuator lever at the position in 2. above, it should return to its original position by return spring force.
If actuator lever does not operate as described above, replace it.
