Air Duct: Service and Repair

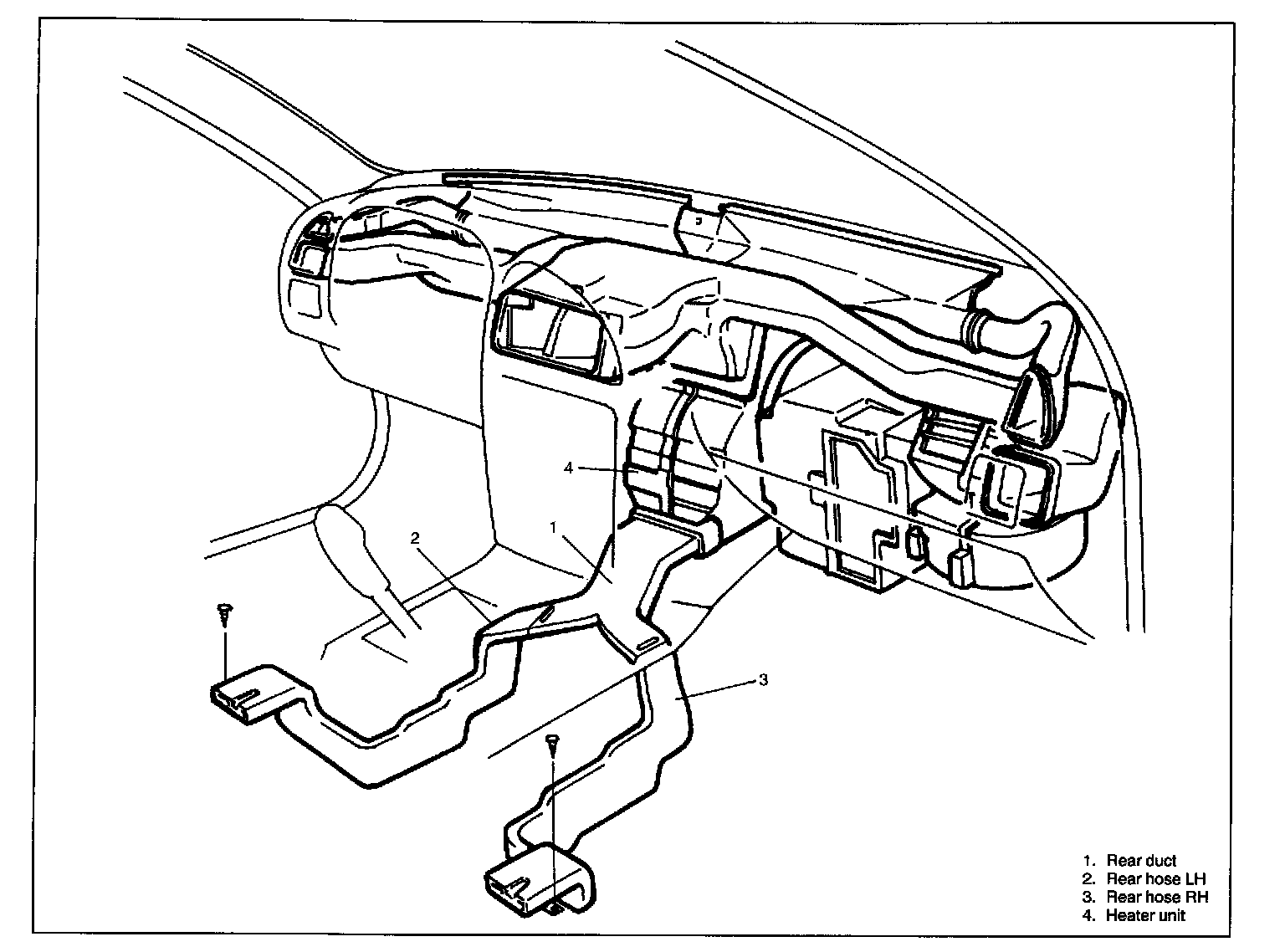

Rear Duct:
COMPONENTS REMOVAL 1.
Remove front seat.
2.
Remove console front box, console rear box and console front extension.
3.
Take off carpet till rear duct is totally exposed.
INSTALLATION Reverse removal sequence to install rear duct.
