Blower Motor Switch: Testing and Inspection

INSPECTION OF BLOWER MOTOR SWITCH

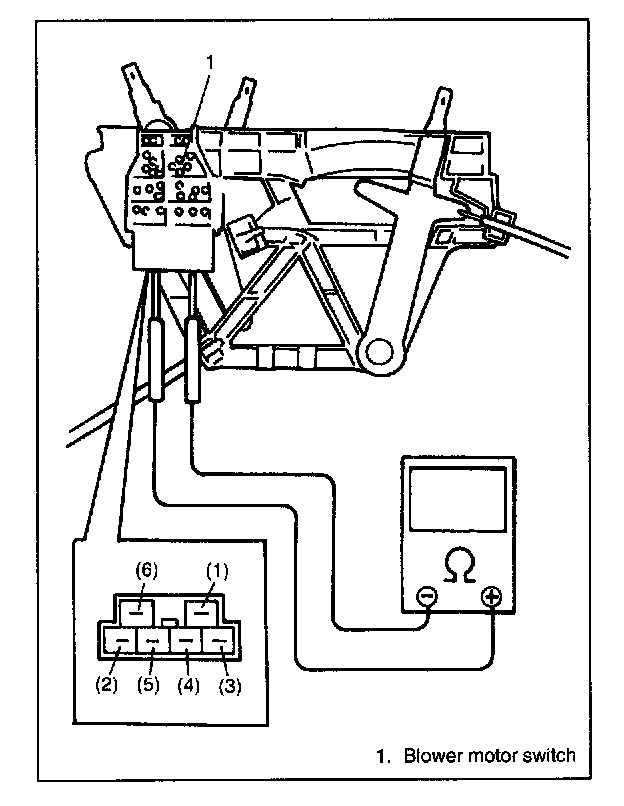

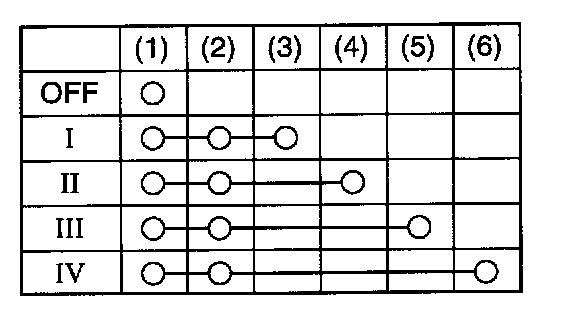

Check switch for each terminal-to-terminal continuity. If there is no continuity, replace heater control lever assembly.
