Compressor Mount

1. Check mounting bolt for looseness.

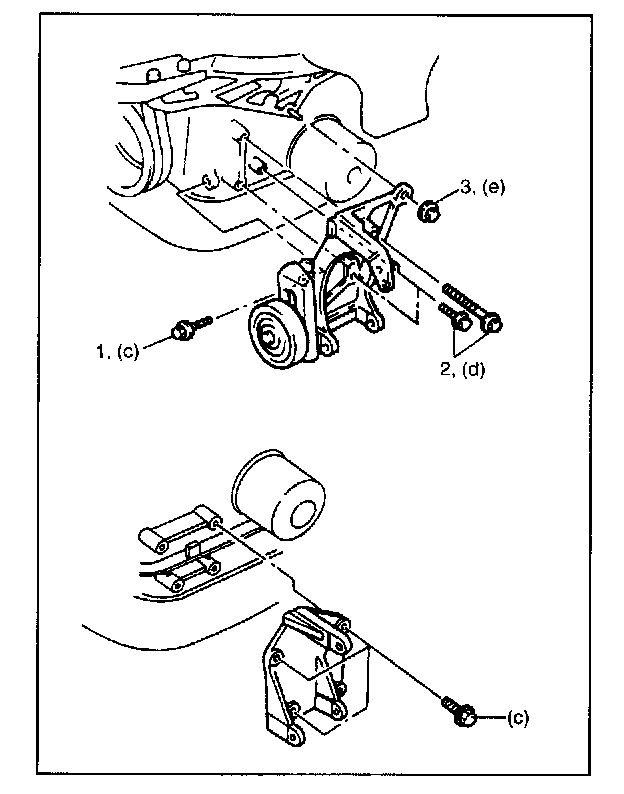

2. Check mounting bracket for crack or fracture. Retighten bolts by following sequence as indicated in figure.

Tightening Torque
(c): 35 N.m (3.5 kg-m, 25.5 lb-ft)
(d): 65 N.m (6.5 kg-m, 47.0 lb-ft)
(e): 65 N.m (6.5 kg-m, 47.0 lb-ft)
