Control Lever Assembly

Control Lever Assembly

REMOVAL

1. Disconnect negative (-) cable at battery.
2. Disable air bag system.

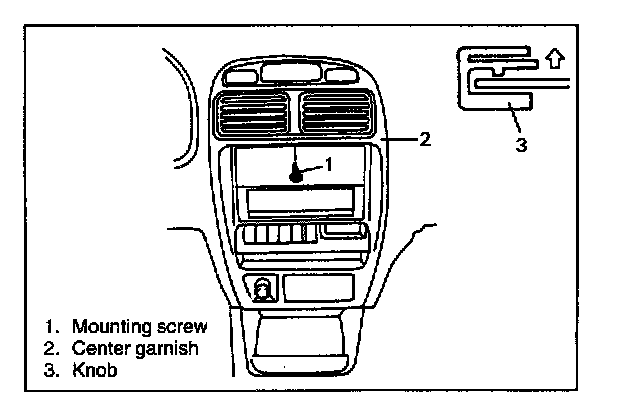

3. Remove control lever knobs and center garnish mounting screw.
4. Disconnect mode control switch and blower motor switch at couplers.
5. Remove center garnish with mode control switch.

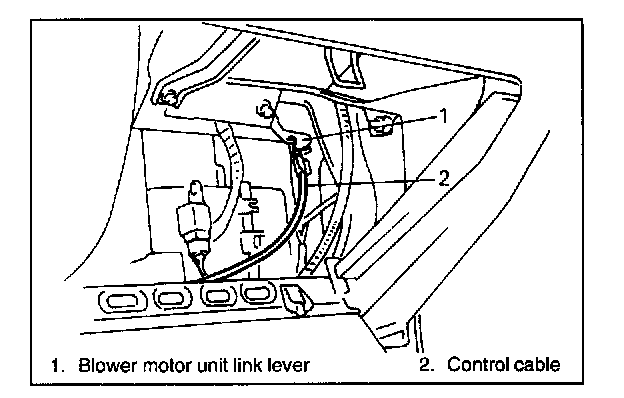

6. Disconnect control cables from blower motor unit and heater unit.
7. Remove control lever assy.

INSTALLATION
Install in the reverse order of removal.
