Dimmer Switch: Testing and Inspection

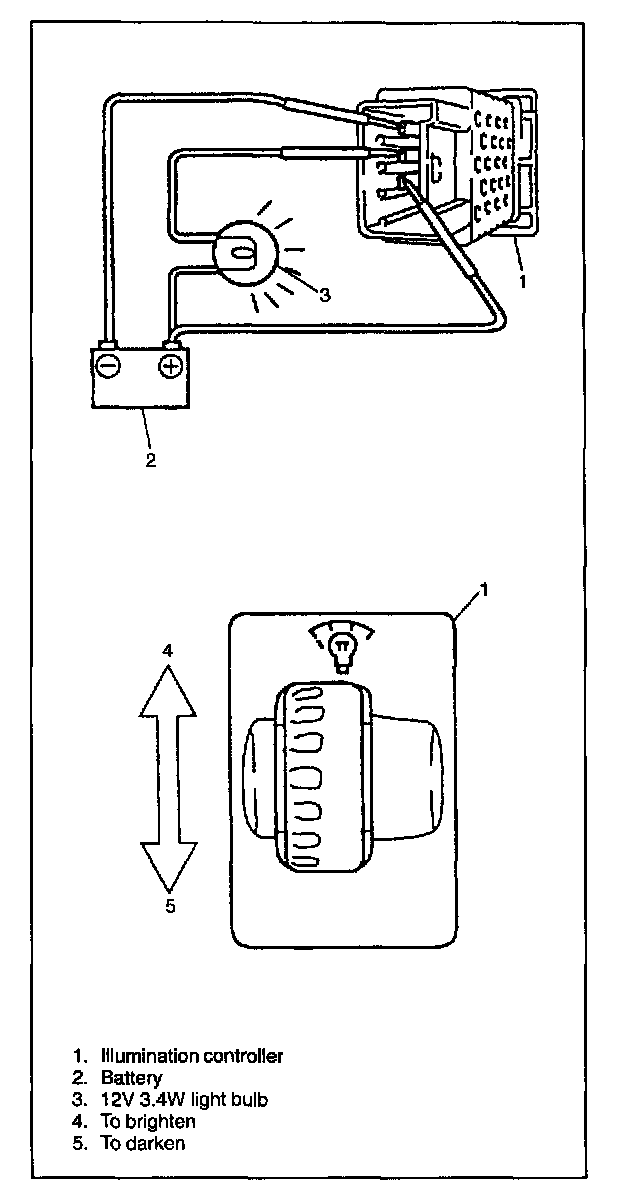

ILLUMINATION CONTROLLER Use a light bulb (if equipped)
(12V 3.4W) and wire as illustrated.
Move illumination controller knob upward to brighten light bulb and downward to darken it.
If it does not brighten or darken light bulb, replace illumination
controller.
