Air Cleaner Housing: Service and Repair

AIR CLEANER ELEMENT
This air cleaner element is dry type. Remember that it needs cleaning according to following procedure.

REMOVAL

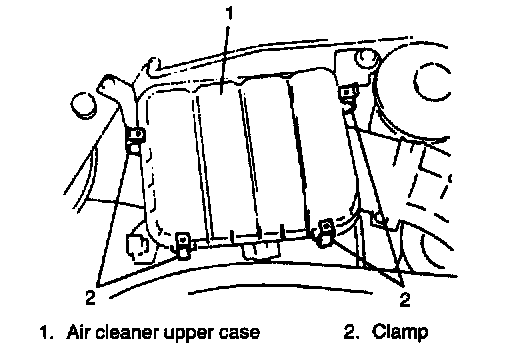

1. Remove air cleaner upper case from lower case after hooking clamps from upper case.
2. Remove air cleaner element.

INSPECTION
Check air cleaner element for dirt.

CLEANING

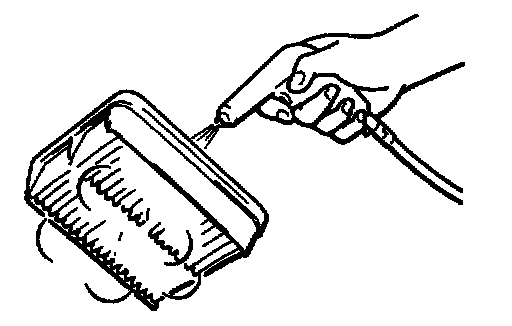

Blow off dust by compressed air from air outlet side of element.

INSTALLATION





1. Install air cleaner element to its lower case.

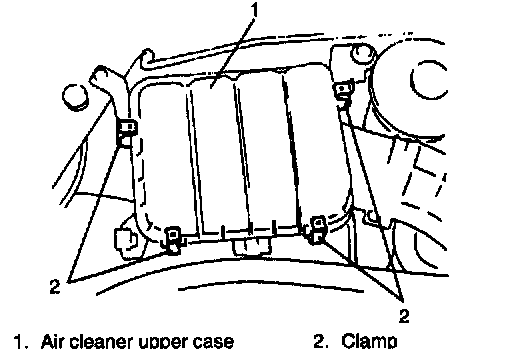

2. Install air cleaner upper case. Hook clamps securely.

AIR CLEANER OUTLET HOSE REMOVAL
1. Disconnect negative cable at battery.

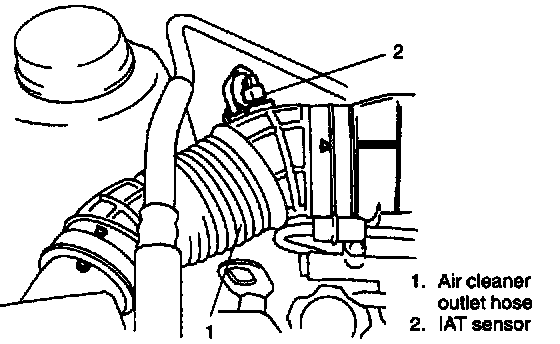

2. Disconnect IAT sensor wire at coupler.
3. Remove air cleaner outlet hose.





INSTALLATION
Reverse removal procedure for installation.

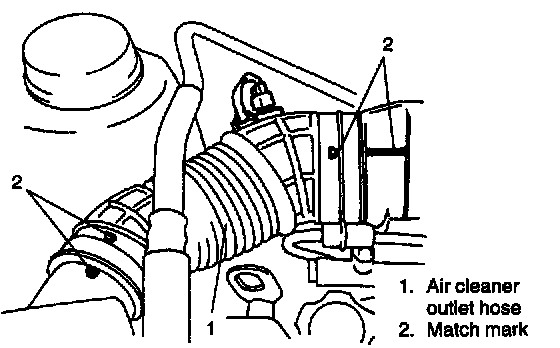

1. Install air cleaner outlet hose by aligning match marks as shown in figure.
