Coolant Line/Hose: Service and Repair

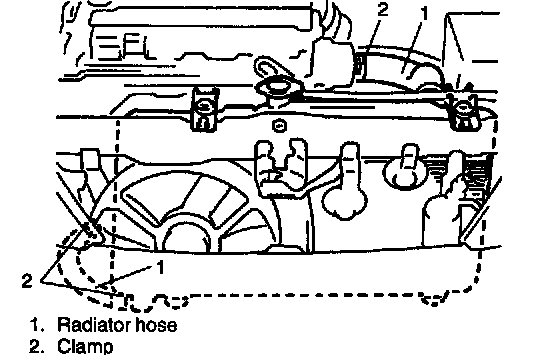

WATER PIPES OR HOSES REMOVAL
1. Drain cooling system.

2. To remove these pipes or hoses, loosen clamp on each hose and pull hose end off.

INSTALLATION
Install removed parts in reverse order of removal procedure, noting the following.
^ Tighten each clamp securely.
^ Refill cooling system with proper coolant.
