Fuel Tank Pressure Sensor Inspection

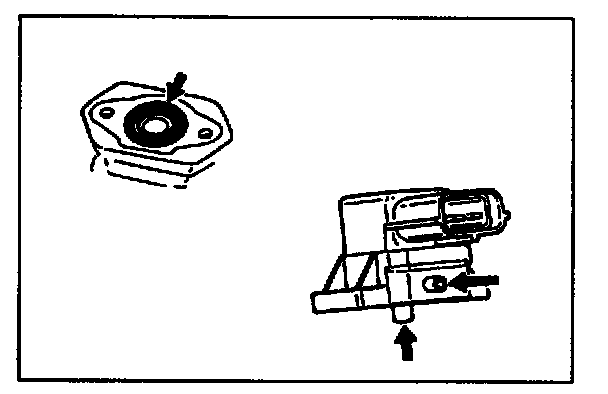

1. Check sensor air vent hole and pressure passage for clog. Clean if clogged.
2. Check sensor O-ring for damage and deterioration. Replace as necessary.
3. Check sensor for operation referring to 'Tank pressure sensor inspection" in DTC P0450 Diag. Flow Table. If found defective, replace.
