Transmission Position Sensor/Switch: Testing and Inspection

INSPECTION

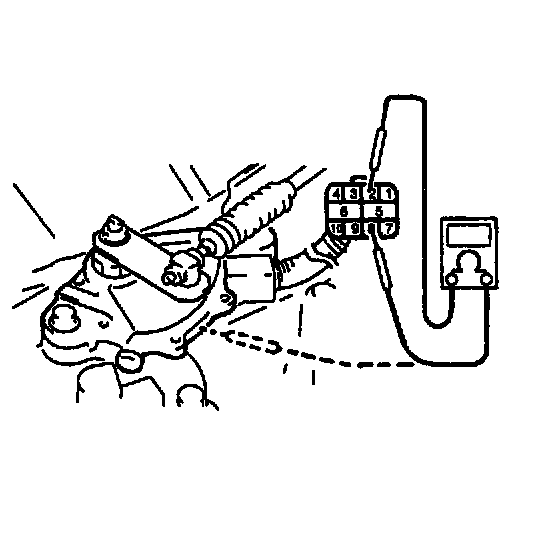

1. Disconnect transmission range sensor at connector.

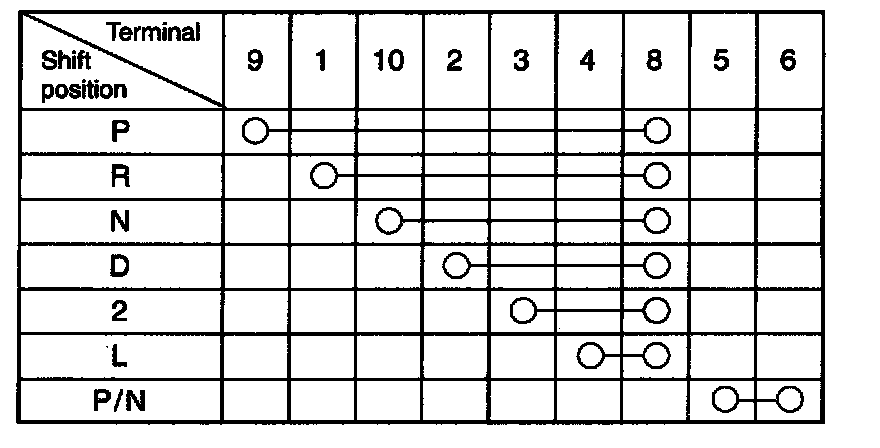

2. At each of P, R, N, D, 2 and L shift position, check continuity between terminals as well as each terminal and switch case. Continuity should be indicated only between those terminals as shown in table at each shift position. Continuity should not exist between any terminal and switch case. If malfunction is found, adjust or replace.
