Speed Sensor

SPEED SENSOR

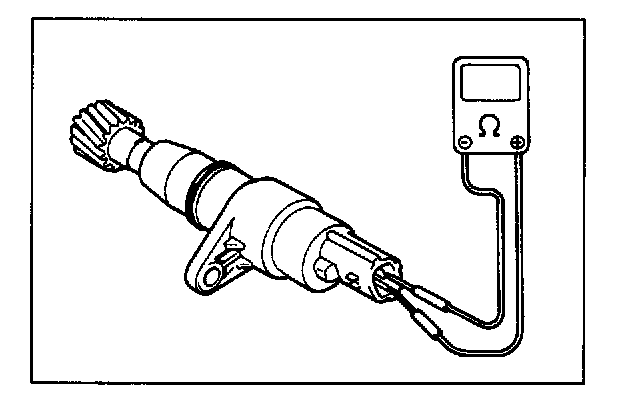

- Resistance between terminals should be within following range.

Coil resistance (20 ° - 30 °C): 300 - 450 ohm

- When speed sensor shaft is turned with fingers, resistance due to magnetic force (click) should be felt.
