Speed Sensor With Automatic Transaxle
INSPECTION
1. Disconnect negative cable at battery.
2. Disconnect A/T VSS coupler.

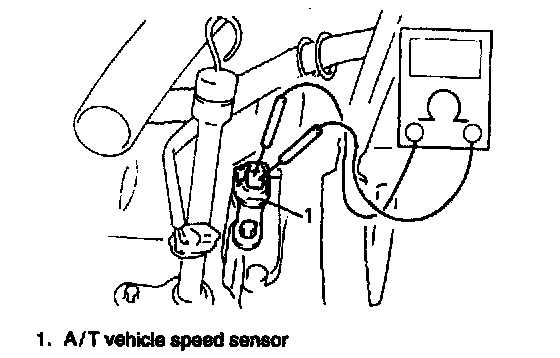

3. Check resistance between A/T VSS terminals.
A/T VSS standard resistance: 648 - 792 ohms at 20° C (68° F)
1. Disconnect negative cable at battery.
2. Disconnect A/T VSS coupler.
3. Check resistance between A/T VSS terminals.
A/T VSS standard resistance: 648 - 792 ohms at 20° C (68° F)
