Refueling Control Valve: Service and Repair

REFUEL VAPOR CONTROL VALVE

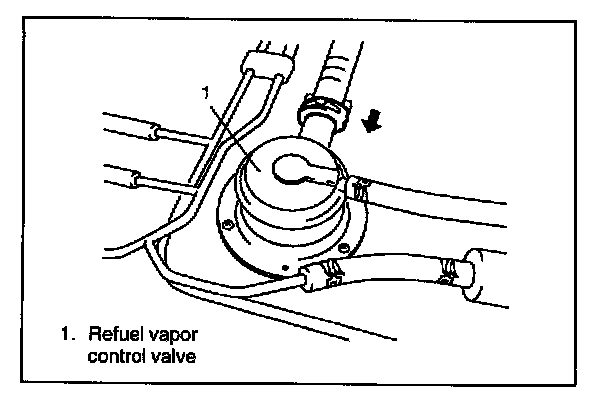

REMOVAL




1. Remove fuel tank from vehicle body.
2. Disconnect hoses from vapor control valve.

For quick joint, disconnect it as follows:
1. Remove mud or dust around joint by blowing compressed air, and push joint fully in arrow direction.
2. Disconnect hose joint while joint lock is unlocked by pushing both sides of joint.

3. Remove vapor control valve from fuel tank.

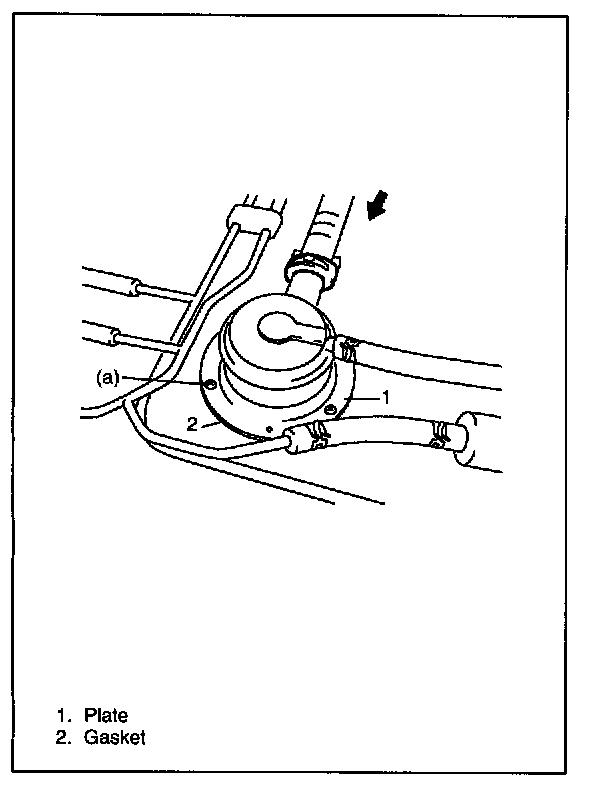

INSTALLATION




1. Clean mating surfaces of refuel vapor control valve and fuel tank.
2. Install new gasket, refuel vapor control valve and plate to fuel tank.

CAUTION: At this time, align screw holes in fuel tank gasket and plate accurately, or vapor may leak.

Tightening Torque
(a): 1.6 Nm (0.16 kg-m, 1.0 lb-ft)

3. Connect hoses to vapor control valve and clamp them securely. For quick joint, push joint into pipe till joint lock clicks.
4. Install fuel tank to vehicle body.
