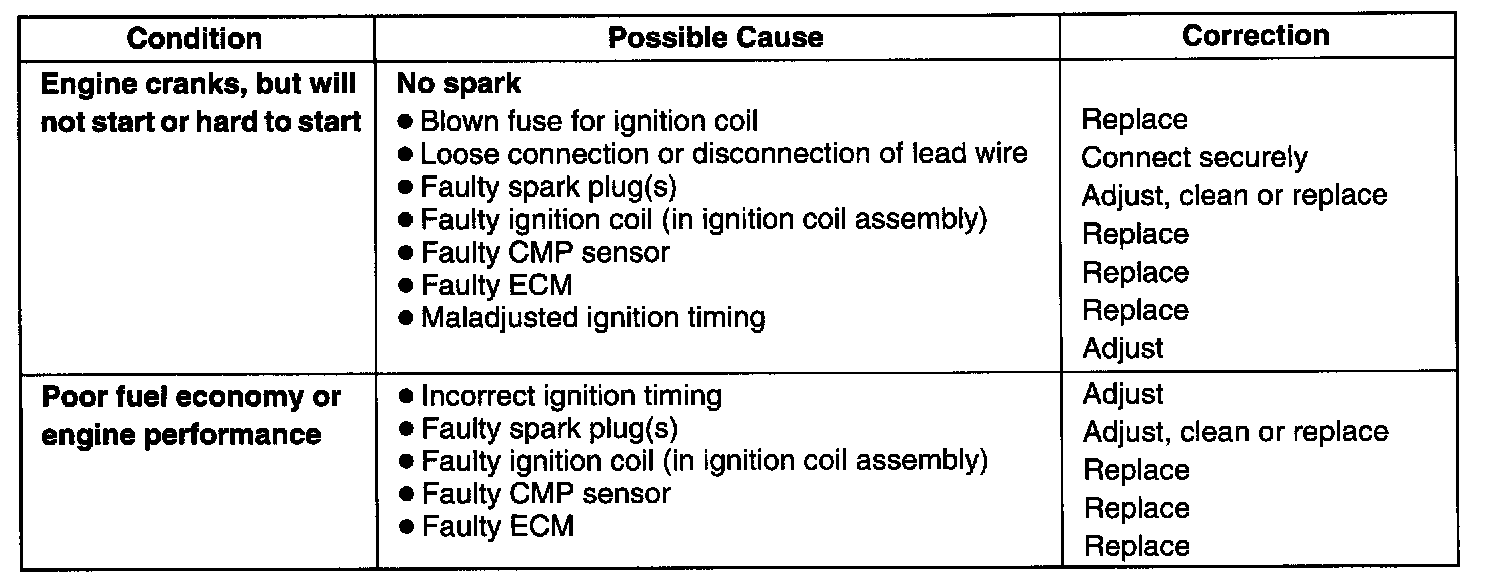

System Diagnosis

Reference

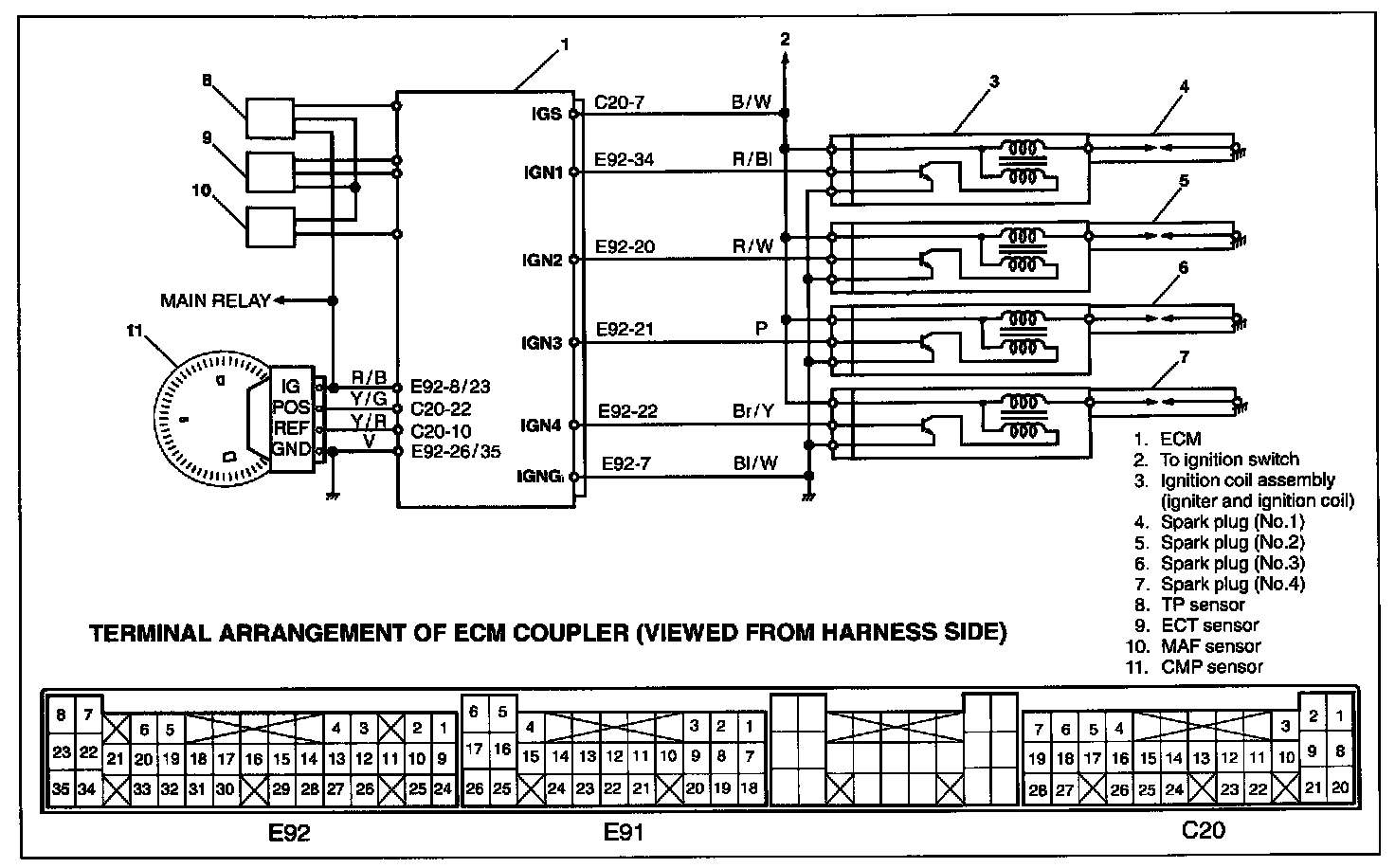

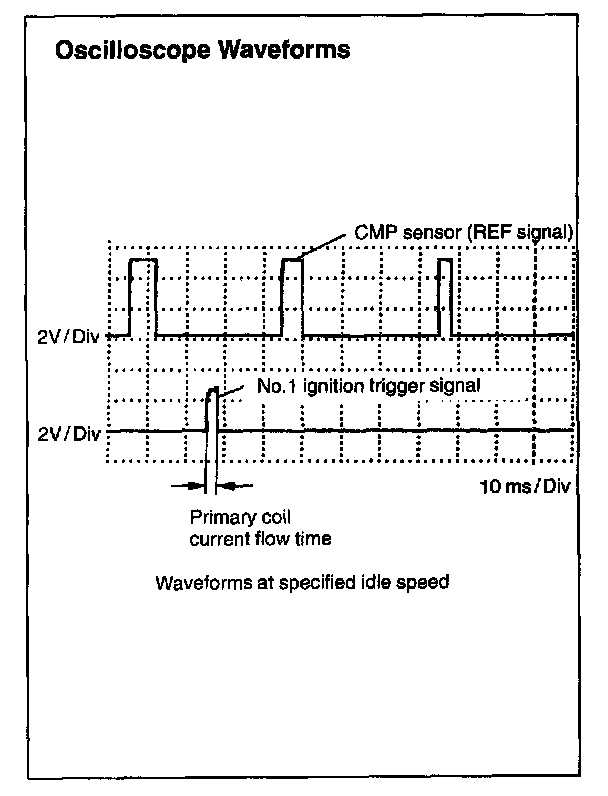

Oscilloscope wave forms of CMP sensor and No.1 ignition trigger signal are as shown in figure when connecting oscilloscope between terminals C20-10 of ECM (PCM) connectors connected to ECM (PCM) and ground, and between terminal E92-34 and ground.
