Component Tests and General Diagnostics
METER INSPECTION 1.
Remove rear seat.
2.
Disconnect P/B lead wire going to gauge unit.
3.

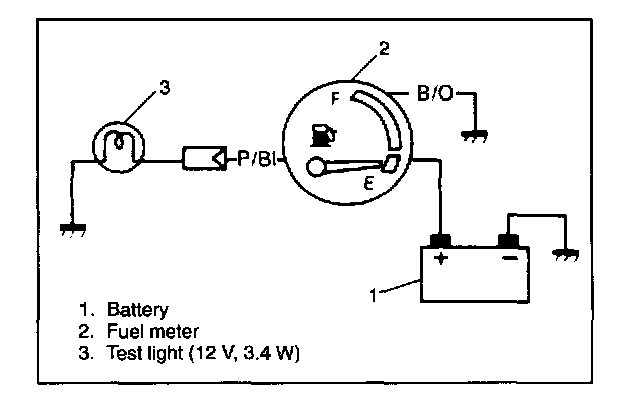

Use a bulb
(12 V 3.4 W) in position to ground lead wire as illustrated.
4.
Turn ignition switch
ON. Make sure that bulb is lighted with meter pointer fluctuating several seconds thereafter. If meter is faulty, replace.
