Ignition Switch: Testing and Inspection

IGNITION (MAIN) SWITCH
1. Disconnect negative (-) cable a battery
2. Disable air bag system.
3. Disconnect main switch lead wire connectors from junction/fuse block and air bag harness.

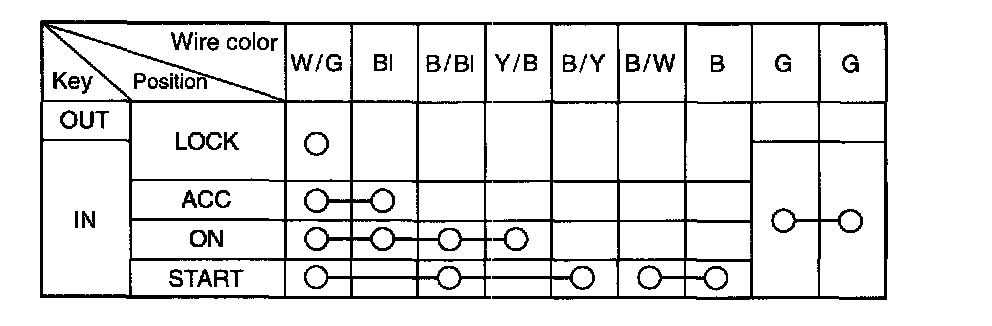

CHECKING CONTINUITY BETWEEN TERMINALS
Use a circuit tester to check the continuity at each switch position.
If any continuity is not obtained, replace main switch.
ACC: Accessory
