Starting Motor

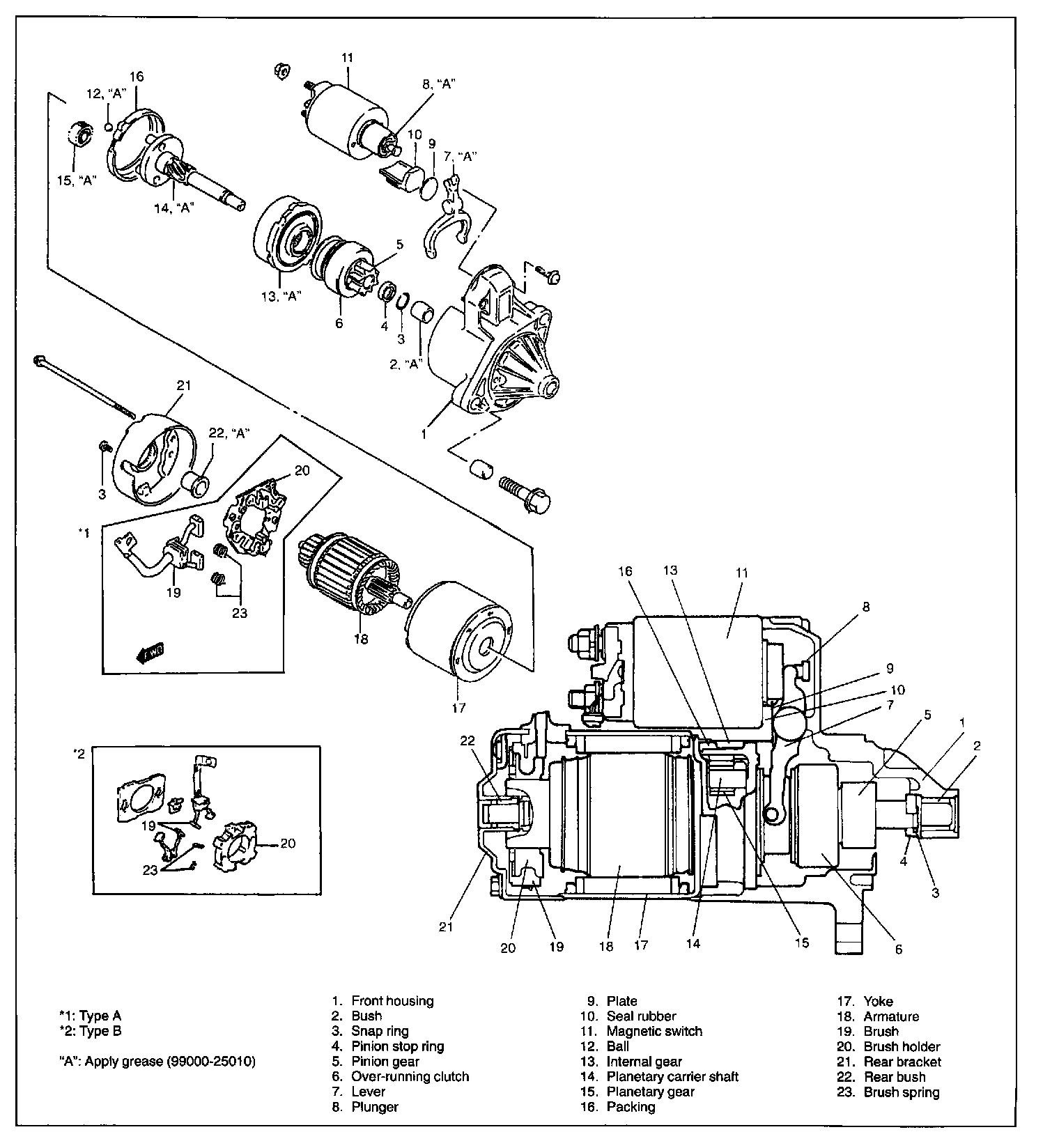

The starting motor consists of parts shown and has permanent magnets mounted in starting motor yoke (frame).
The magnetic switch assembly and parts in the starting motor are enclosed in the housings so that they will be protected against possible dirt and water splash.
NOTE: -
Make sure to apply grease before assembly where so indicated "A" in the figure.
-
Spare parts have been lubricated.
