Wipers/Washers - Incorrect Wiring Diagram
Division: AutomotiveCategory: Technical
Section Title: Body Electrical
TSB No. TS 02 10063
SUBJECT:
SERVICE MANUAL UPDATE
MODEL(S):
ESTEEM (SY416, SY418)
YEAR:
1995-2001
CONDITION:
INCORRECT WIRING DIAGRAM
CAUSE:
N/A
CORRECTION:
Update listed Service Manuals with corrected wiring diagram.
CORRECTION:

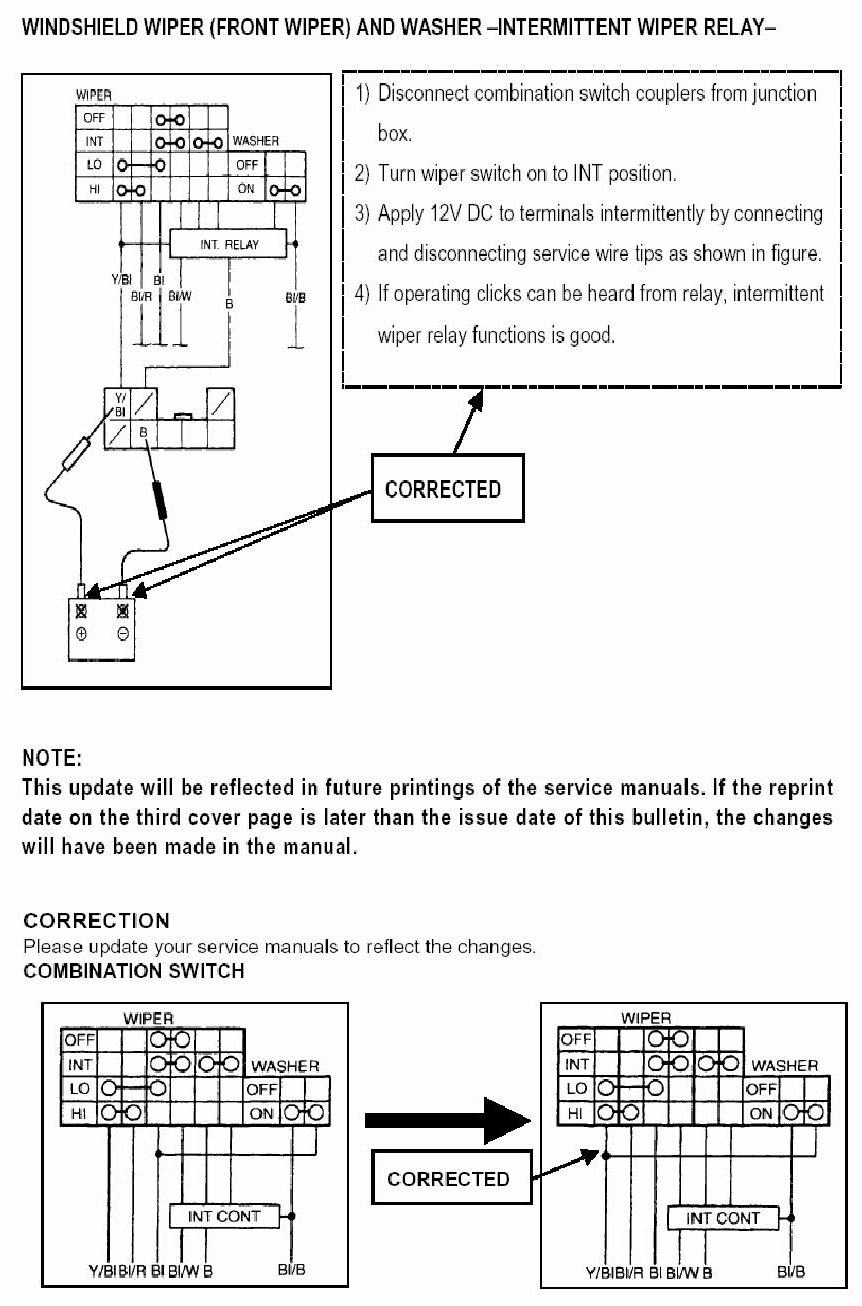

This bulletin is to inform you of a correction to the wiring diagram of the wiper/washer combination switch and a correction to the wiring diagram and the inspection sentence of the intermittent wiper relay.

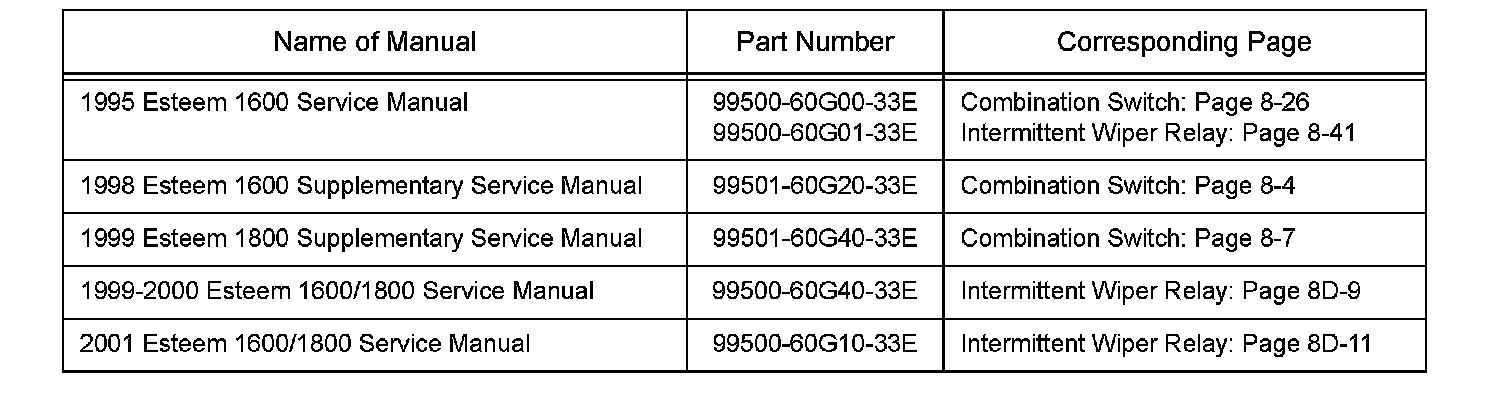

AFFECTED SERVICE MANUALS
