Transmission Speed Sensor: Testing and Inspection
INSPECTION 1.
Disconnect negative cable at battery.
2.
Disconnect forward clutch cylinder revolution sensor coupler.
3.

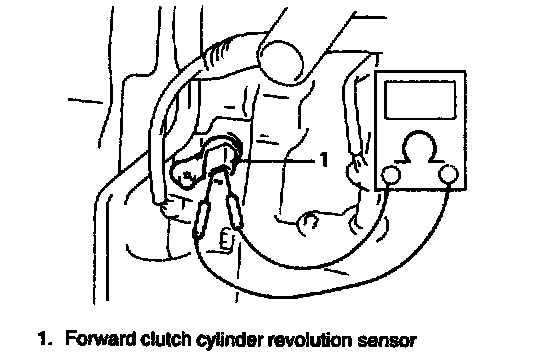

Check resistance between forward clutch cylinder revolution sensor terminals.
Forward clutch cylinder revolution sensor standard resistance:
387 - 473 ohms at 20° C (68° F)
