Power Window Main Switch

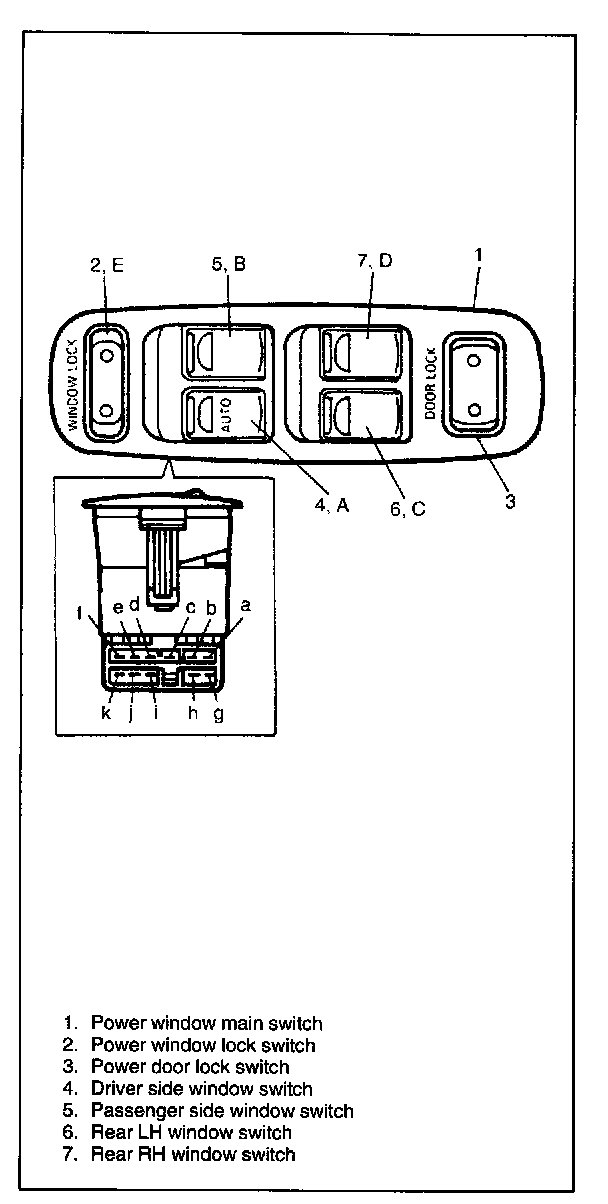

POWER WINDOW MAIN SWITCH

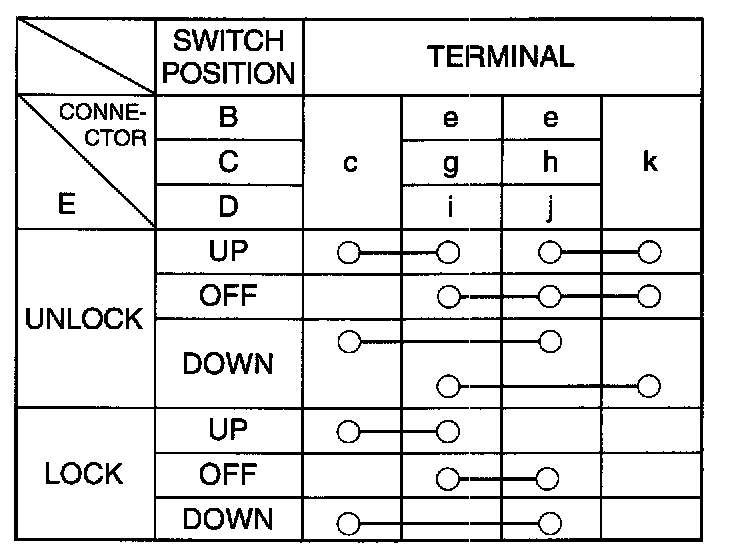

Driver Side Window Switch:

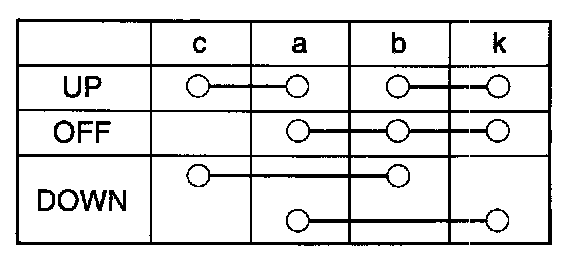

Passenger And Rear Side Window Switches:
Inspect switch continuity between terminals.
