Wiper and Washer Systems: Description and Operation

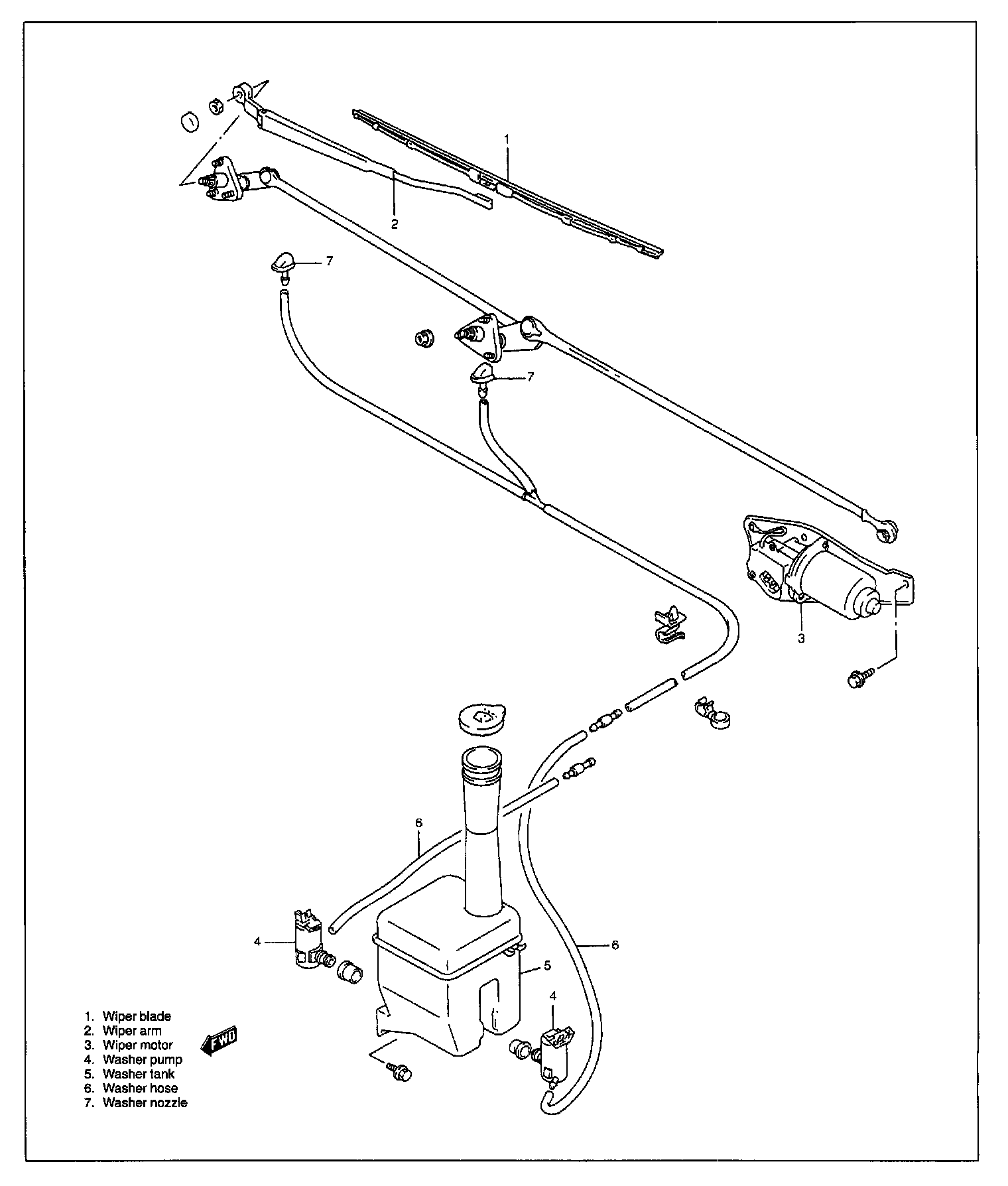

WINDSHIELD WIPER AND WASHER
The windshield wiper is 3-speed type and the windshield washer is equipped with a separate-type washer pump. The washer tank is located inside of the front part of the left front fender. It has washer pumps for the front and rear respectively.

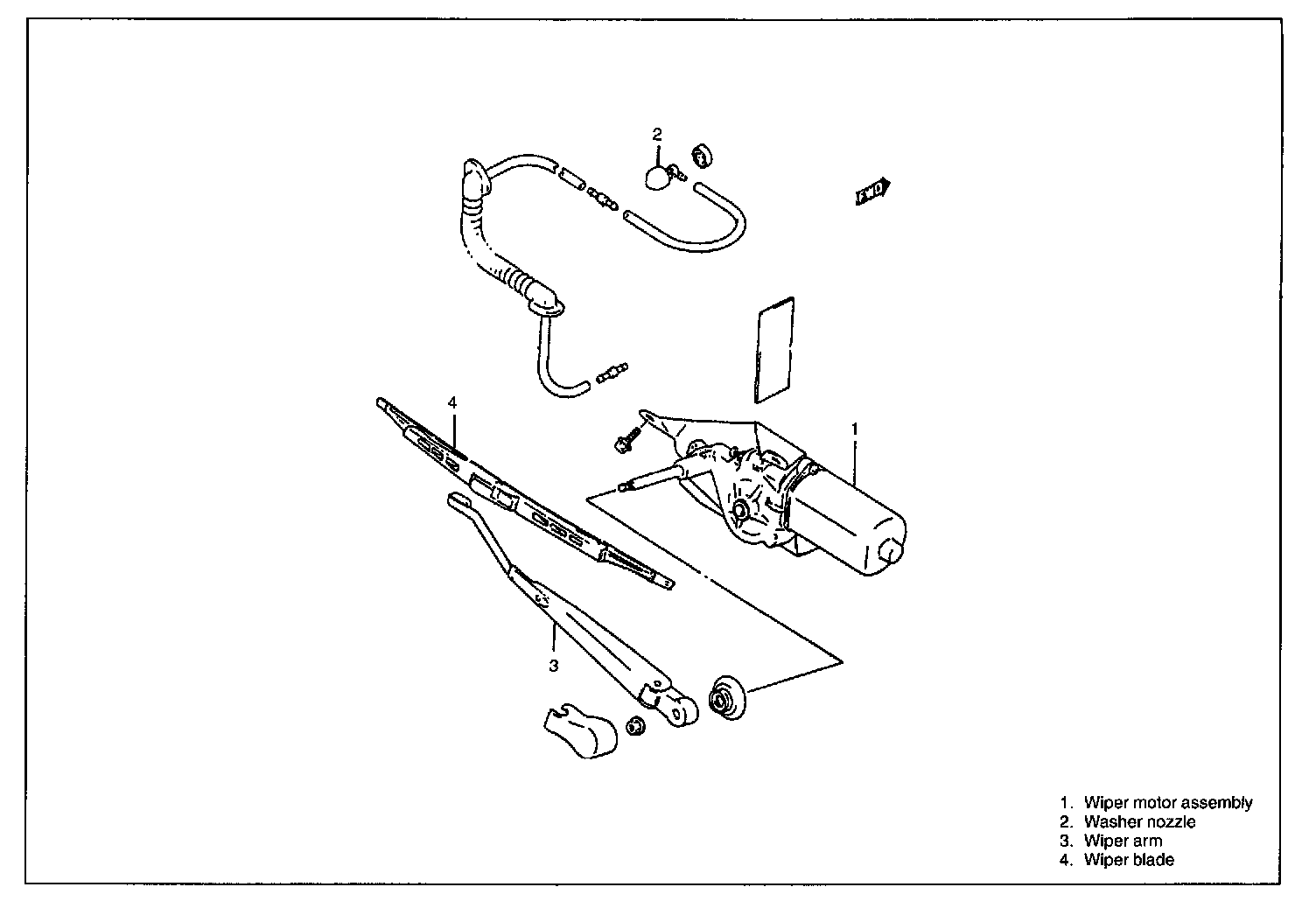

REAR WINDOW WIPER AND WASHER (If equipped)
The rear window wiper is of the one-speed type, and its washer is equipped with a separate-type washer pump.
