Windshield Washer Pump: Service and Repair
REMOVAL 1.
Disconnect battery (-) cable.
2.
Remove front fender lining (LH).
3.

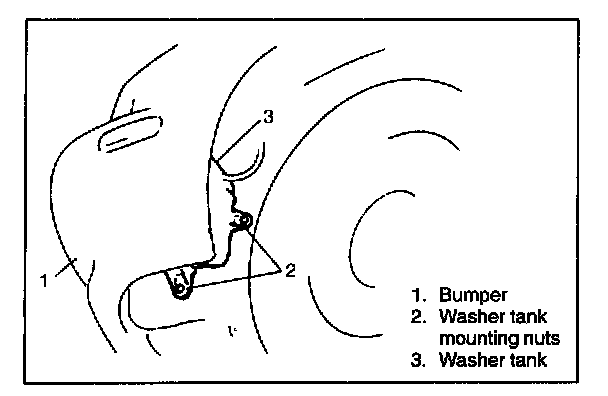

Remove washer tank fitting screws.
4.
Disconnect pump lead wires and hoses.
5.
Remove washer tank.
6.
Remove pump from tank.
INSTALLATION Reverse removal procedure for installation.
