Wiper Relay: Testing and Inspection
INTERMITTENT WIPER RELAY 1.
Disconnect combination switch coupler.
2.

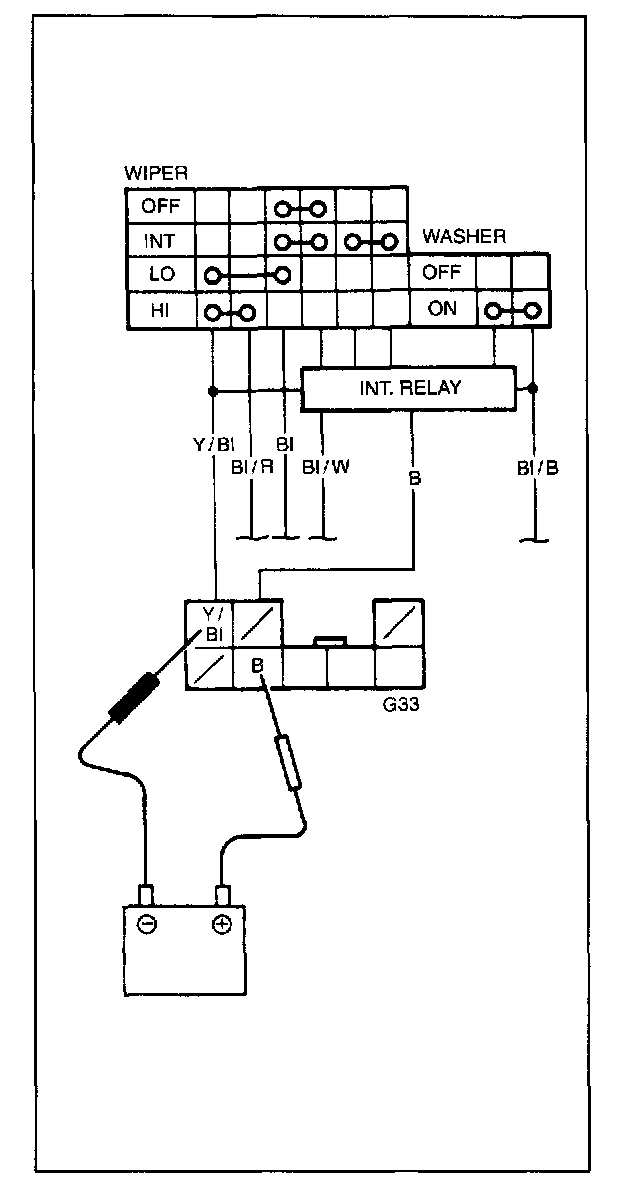

Connect (+) cord and (-) cord of
12 V battery to coupler terminals as shown.
3.
Turn intermittent switch to
"OFF" position.
If an operating sound is heard from
relay, it is at work properly.
