Wiper Switch: Testing and Inspection

Combination Switch:

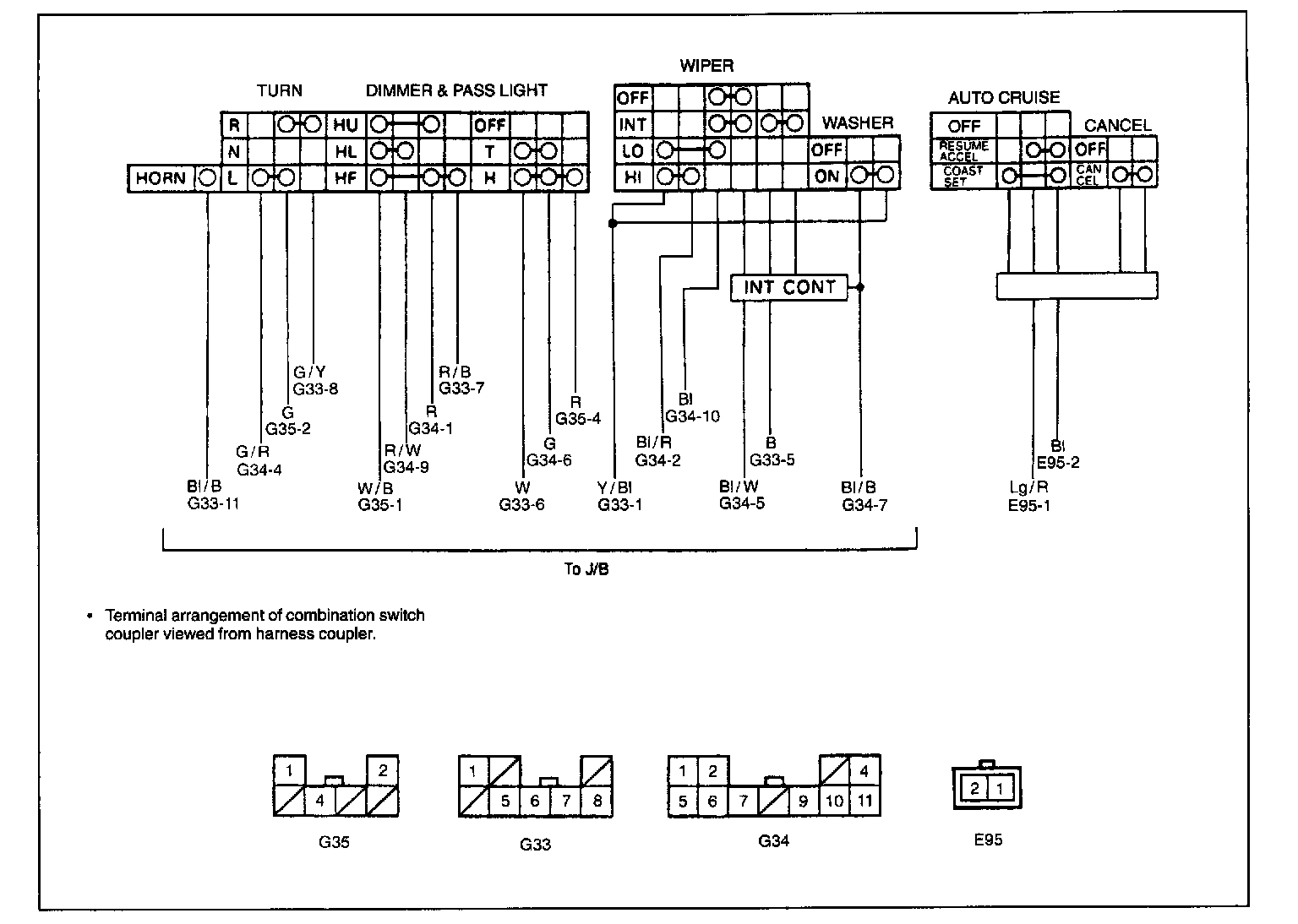

COMBINATION SWITCH INSPECTION
1. Disconnect negative (-) cable at battery.
2. Disconnect combination switch lead wire connectors from junction/fuse block.
3. Use a circuit tester to check the continuity at each switch position.
If any continuity is not obtained, replace switch.
