E - Air Bag Warning Lamp Keeps Flashing

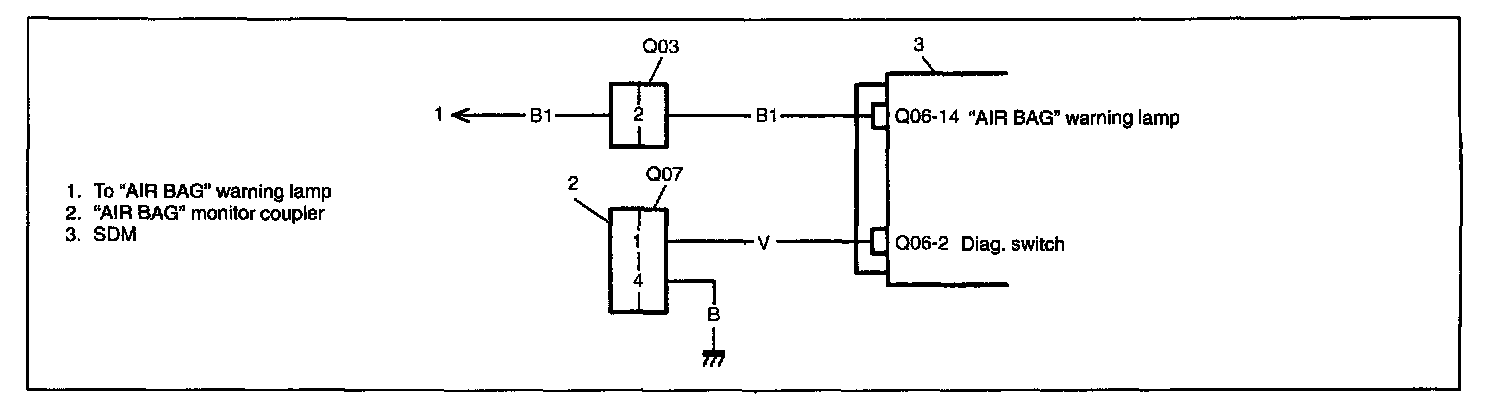

Wiring Diagram

CAUTION:
- When measurements are requested in this table use specified digital multimeter with correct terminal adapter from special tool (Connector test adapter kit).
- When a check for proper connection is requested refer to INTERMITTENT AND POOR CONNECTIONS in this section.
- When an open in air bag wire harness, damaged wire harness, connector or terminal is found, replace wire harness, connectors and terminals as an assembly.

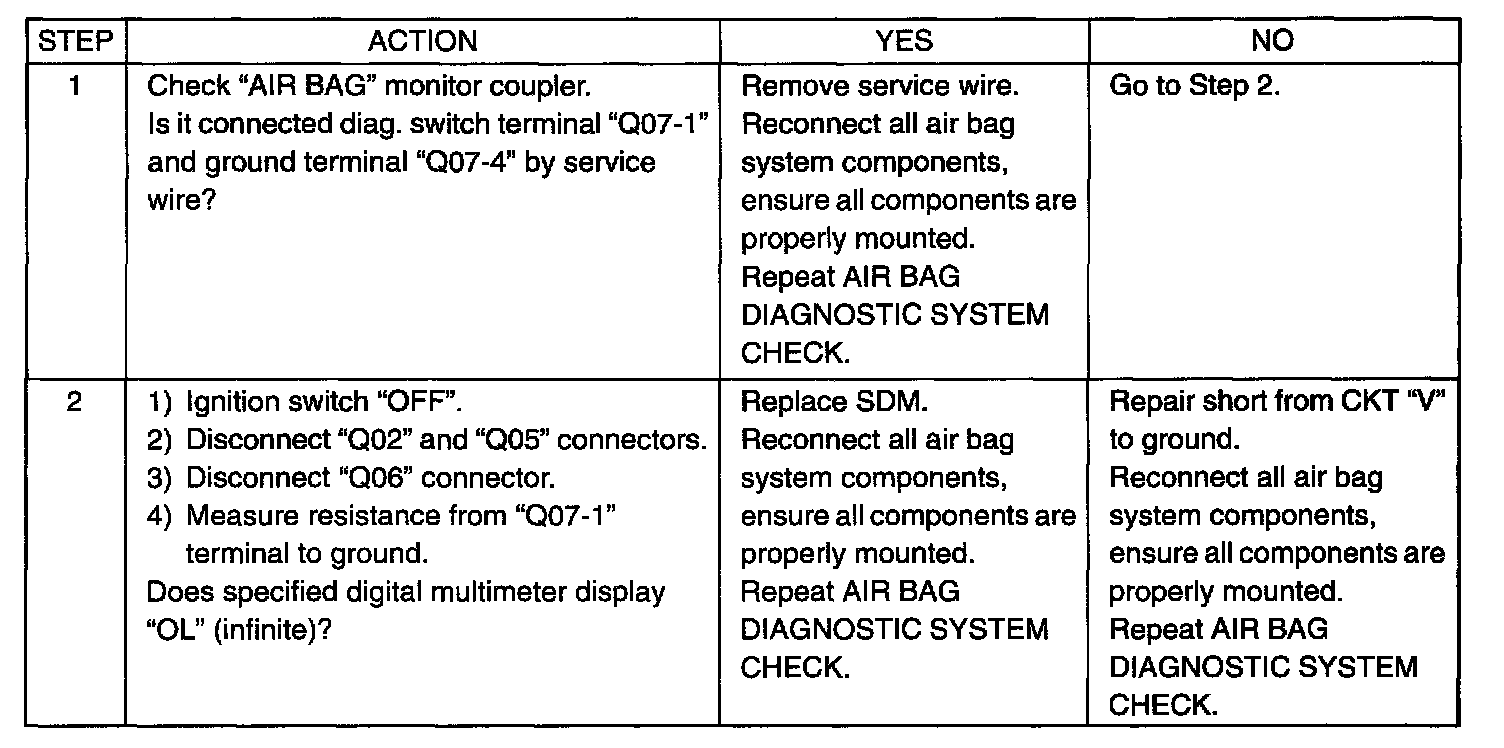

TABLE E (Steps 1 And 2):

TABLE TEST DESCRIPTION:
Number(s) below refer to circled number(s) on the diagnostic table.
1. This test checks for a short between Diag. switch and ground terminals in "AIR BAG" monitor coupler by service wire.
2. This test checks for a short from the Diag. switch circuit to ground.
