Unit Assembly
ASSEMBLY1. Apply lithium grease to new oil seal lip section.
2. Install new oil seal to transmission case.
3. Insert manual valve lever shaft to transmission case.
4. Install new spacer and manual votive lever to manual valve lever shaft.
5. Install new slotted spring pin.
6. Rotate new spacer approximately 180 degrees.
7. Stake small hole of new spacer.

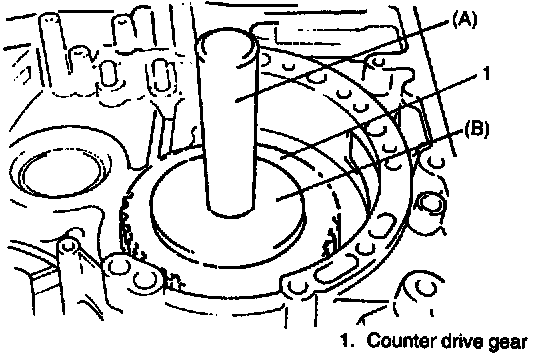

8. Press counter drive gear, using special tools.
Special Tools

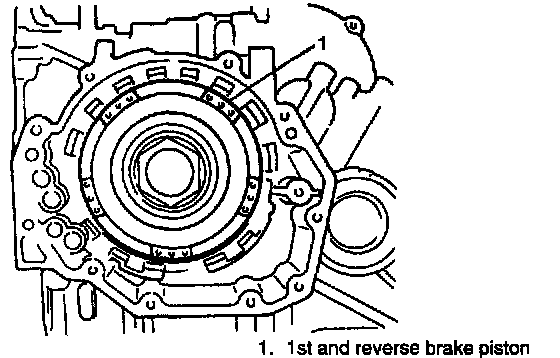

(A): 09924-74510
(B): 09926-68310
9. Install snap ring to angular ball bearing.
10. Coat new O-rings with A/T fluid.
11. Place 1st and reverse brake piston with O-rings installed.
NOTE: Be careful not to damage O-rings during piston installation.
12. Mount brake piston return spring.
13. Install retainer ring by compressing brake piston return spring with flat drivers or the like.
14. Install brake flanges "F" disc/clutch and flanges "D" and brake plates in the following order.
F -> D -> P -> D -> P -> D -> P -> D -> F

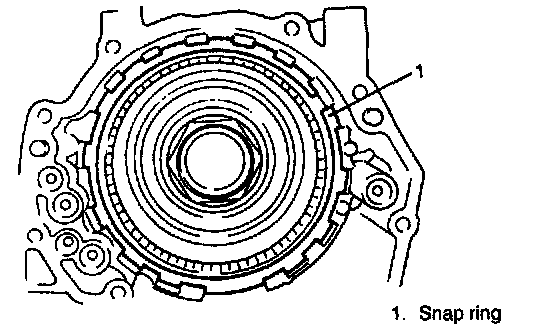

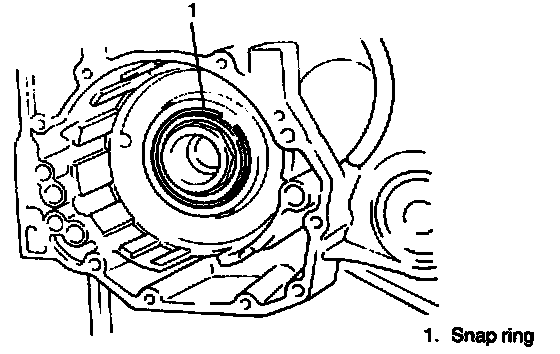

15. Install snap ring.
NOTE: Make sure that opening end of snap ring should be aligned with protrusion of transmission case.

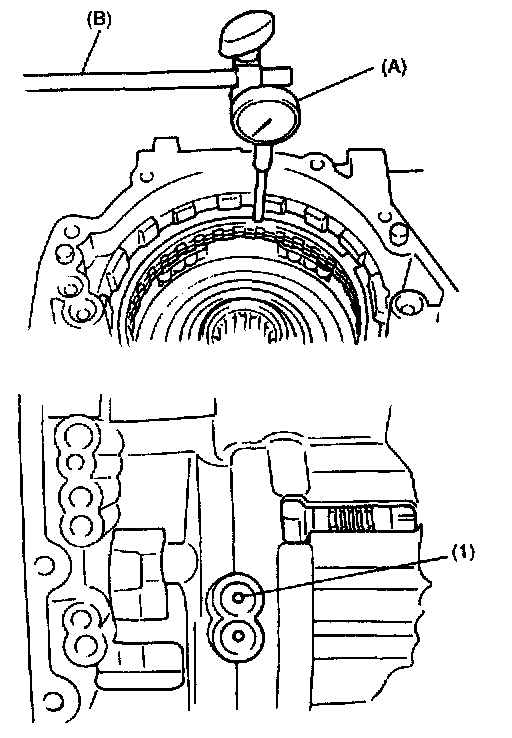

16. Install special tools on transmission.
Special Tools
(A): 09900-20606
(B): 09900-20701
Measure 1st and reverse brake piston stroke by applying and releasing compressed air (400 - 800 kPa, 4 - 8 kg/cm2, 57 - 113 psi) through oil hole section (1).
Specified value: 1.40 - 2.20 mm (0.055 - 0.087 inch)
17. Place compression spring for 2nd and 4th brake into transmission case.
18. Apply A/T fluid to new O-rings.
19. Assemble 2nd & 4th brake piston assy.

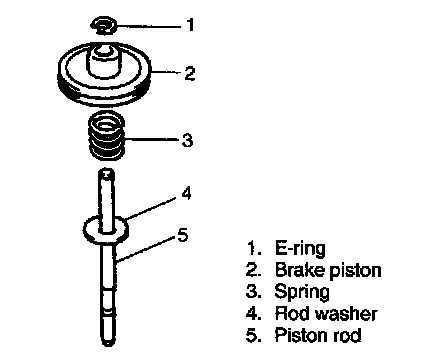

a. Install rod washer, spring, brake piston and new E-ring to brake piston rod.

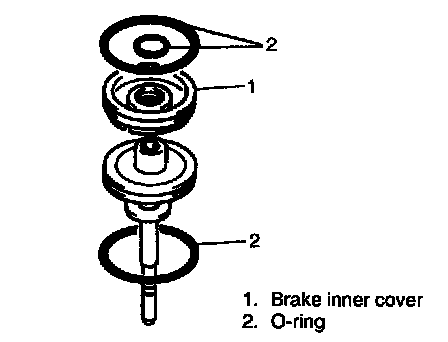

b. Install brake inner cover and new O-rings.
20. Put 2nd and 4th brake piston spring in transmission case and insert piston assy. and brake inner cover into case.

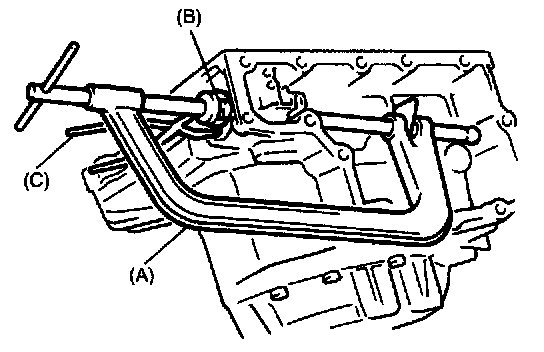

21. Apply valve lifter as shown figure and push piston cover.
Special Tools
(A): 09916-14510
(B): 09916-48210
22. Install snap ring by using snap ring plier (special tool) and remove special tools (A) & (B).
Special Tool
(C): 09900-06108

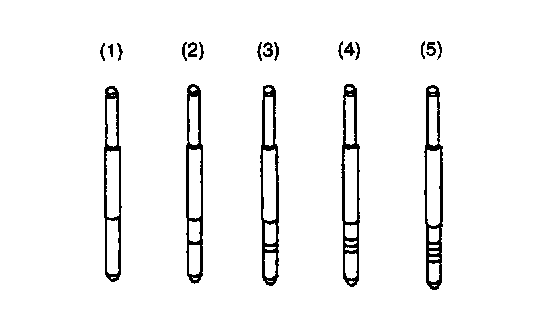

23. Check 2nd and 4th brake piston stroke. For detail, refer to step 22 on UNIT DISASSEMBLY. If its stroke is out of specification, select proper piston rod of 5 type (1) - (5) instead of original one and reinstall 2nd & 4th brake piston assy. so as to be within specification.

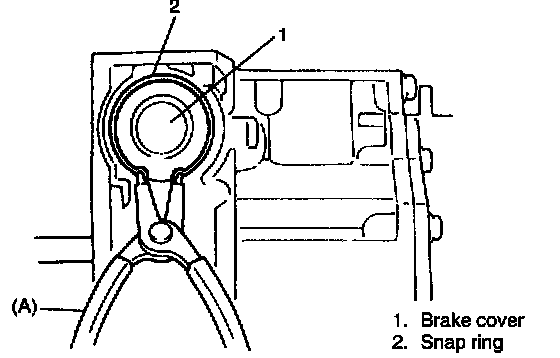

24. Install brake cover to transmission case with snap ring, using snap ring plier.
Special Tool
(A): 09900-06108 (Snap ring plier)

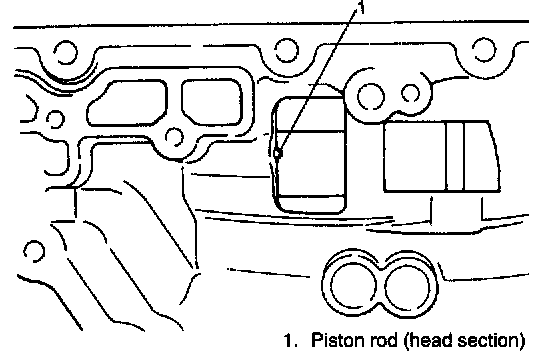

NOTE: It is best for the head section of piston rod to protrude from the inner side of transmission case approx. 2 - 3 mm (0.079 - 0.118 inch)
25. Apply A/T fluid to outer surface of three pins.

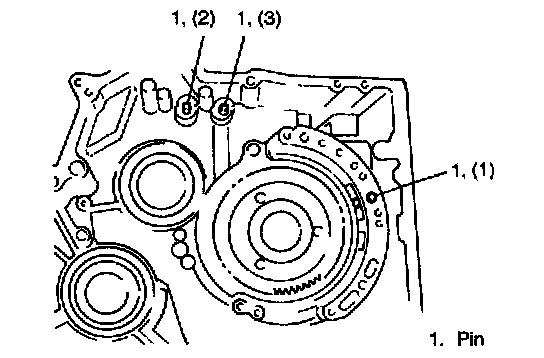

26. Insert three pins to transmission case.
Pin Dimension
27. Apply A/T fluid to transmission lubrication tube.

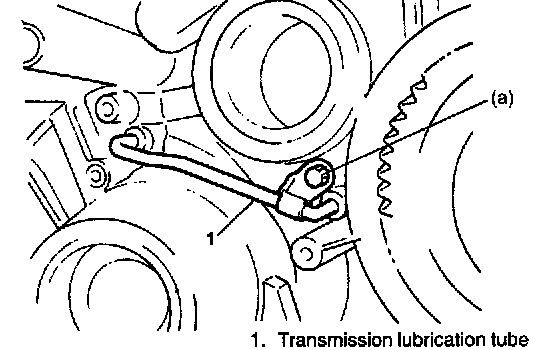

28. Install transmission lubrication tube.
29. Tighten clamp with bolt.
Tightening Torque
(a): 5.5 Nm (0.55 kg.m, 4.0 ft. lbs.)

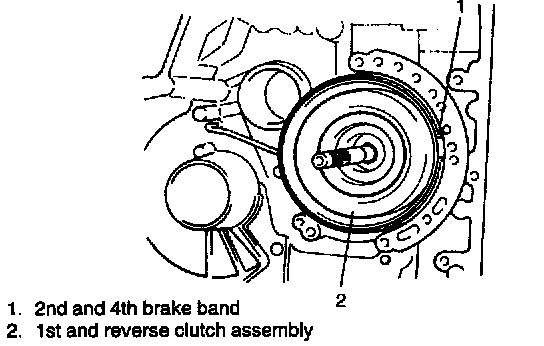

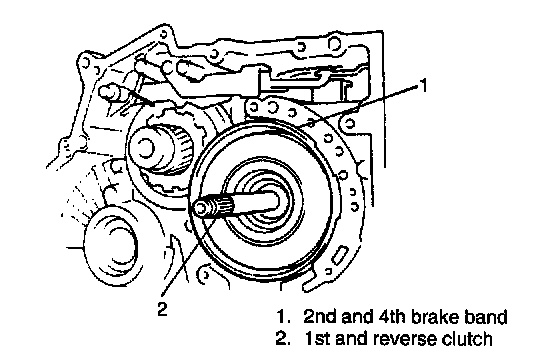

30. Install 2nd and 4th brake band.
31. Install 1st and reverse clutch assembly.

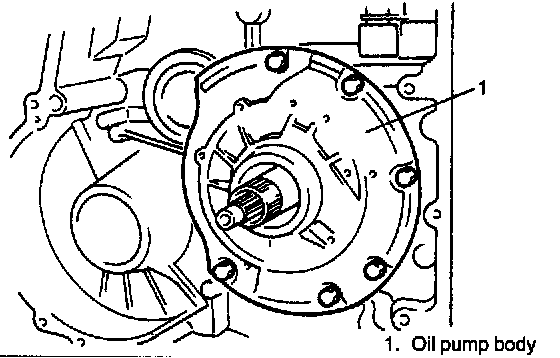

32. Temporarily tighten bolts of oil pump body.
33. Temporarily tighten transmission housing to transmission case with 5-6 bolts.
34. Stand transmission up (i.e. transmission housing facing downward).
35. Install front and rear planetary carrier while rotating counterclockwise and clockwise.

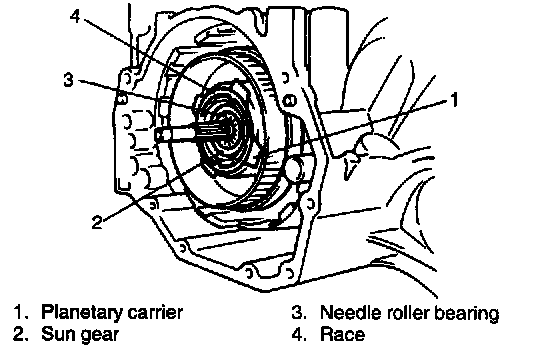

36. Install sun gear with needle roller bearing.
Bearing race dimension
Outside diameter: Approx. 32.2 mm (1.27 inch)
Inside diameter: Approx. 18.9 mm (0.74 inch)
Thickness: Approx. 2.6 mm (0.10 inch)
37. Coat race with grease.
Grease: 99000-25030 (SUZUKI SUPER GREASE C)
38. Install race to planetary carrier.

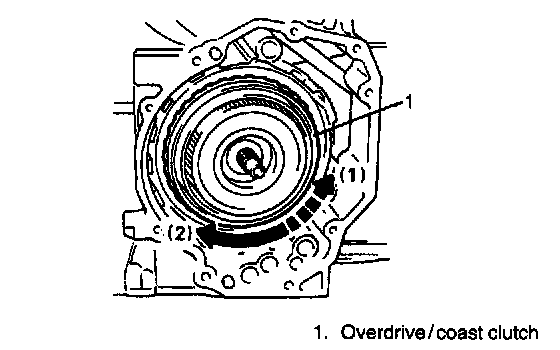

39. Install overdrive/coast clutch while rotating counter clockwise and clockwise.
NOTE: Check to make sure that overdrive/coast clutch locks when turned counterclockwise (1) and moves freely when turned clockwise (2).
40. Install forward clutch while rotating.

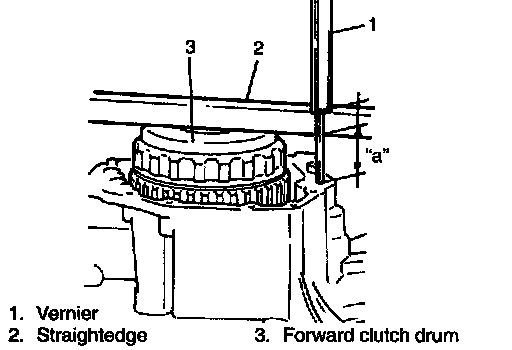

41. Check for correct installation of each component parts as follows.
Measure the distance "a" by using vernier and straightedge. If out of specification, remove forward clutch, overdrive/coast clutch, front and rear planetary carrier and reinstall them properly.
Distance "a": 46.94 - 47.81 mm (1.848 - 1.882 inch)

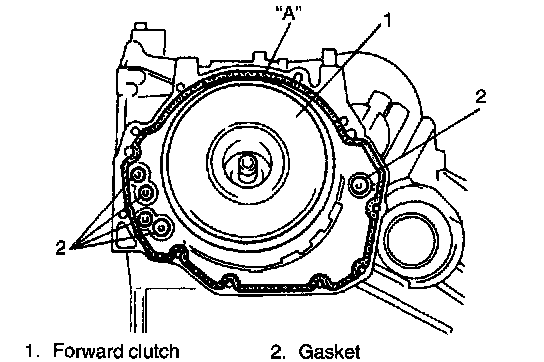

42. Apply sealant to contacting surface of transmission case.
"A": Sealant 99000-31160 (SUZUKI BOND NO.1216)
43. Install five gaskets.
NOTE: There is no installation direction for new gaskets.

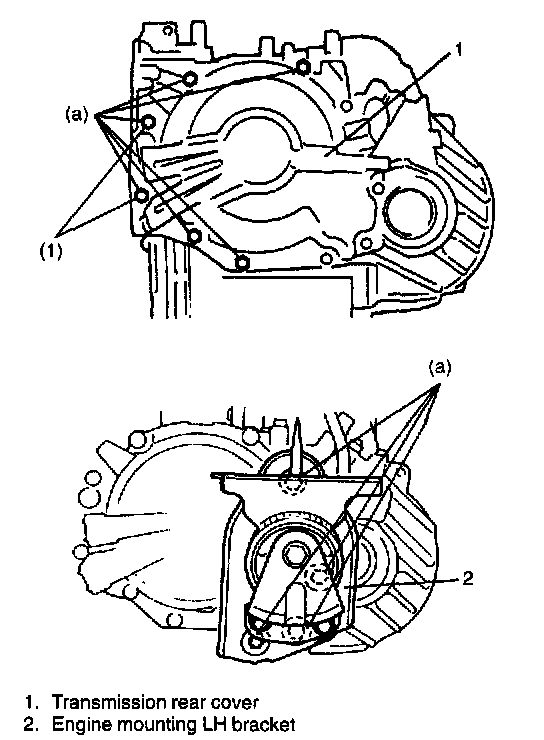

44. Tighten transmission rear cover and engine mounting LH bracket with ten (two new bolts (1)) bolts.
Tightening Torque
(a): 25 Nm (2.5 kg.m, 18.0 ft. lbs.)
45. Turn over transmission.
46. Remove transmission housing.
47. Remove oil pump body, 1st and reverse clutch and 2nd and 4th brake band from transmission case.
48. Apply A/T fluid to race with integrated needle roller bearing.
Race dimension
Outside diameter: Approx. 65.8 mm (2.59 inch)
Inside diameter: Approx. 51.0 mm (2.01 inch)
Thickness: Approx. 2.7 mm (0.11 inch)
49. Install counter driven gear.

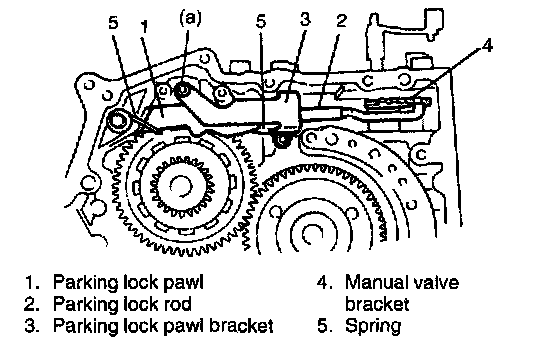

50. Install parking lock rod with parking lock pawl, parking lock pawl bracket and torsion spring.
51. With spacer and torsion spring placed, install bolt and tighten parking lock pawl bracket.
Tightening Torque
(a): 10 Nm (1.0 kg.m, 7.5 ft. lbs.)
52. Insert parking lock rod to parking lock pawl bracket and connect parking lock rod with manual valve lever.
53. Install 2nd and 4th brake band.
54. Install 1st and reverse clutch while rotating counterclockwise and clockwise.
55. Check for correct installation of input shaft as follows. Measure the distance "a" by using vernier and straightedge. If out of specification, remove input shaft with 1st and reverse clutch and reinstall them properly.
Distance "a": 85.65 - 86.39 mm (3.372 - 3.401 inch)
56. Tighten manual detent spring with bolts.
Tightening Torque
(a): 10 Nm (1.0 kg.m, 7.5 ft. lbs.)
NOTE: It is recommended to set to neutral position between spring detent and lever manual valve and then tighten bolts (1).

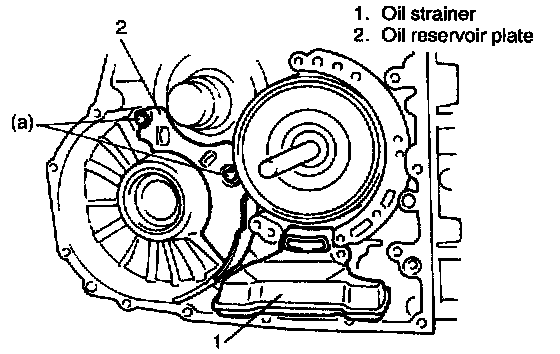

57. Install oil strainer.
58. Tighten oil reservoir plate with bolts.
Tightening Torque
(a): 5.5 Nm (0.55 kg.m, 4.0 ft. lbs.)

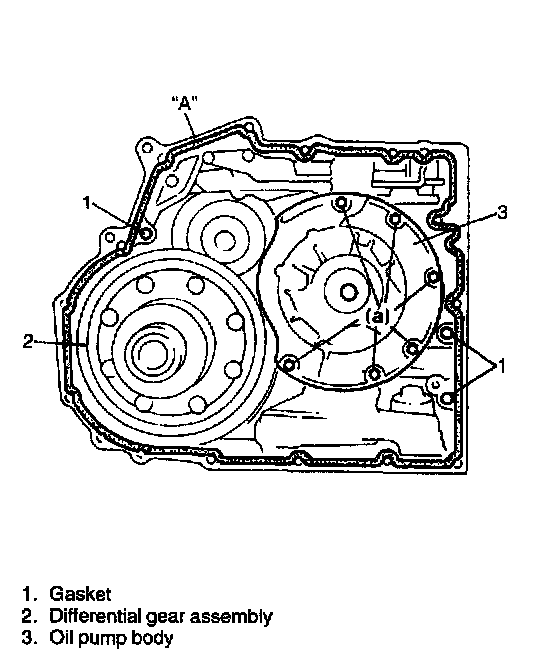

59. Install three new gaskets.
60. Install differential gear assembly.
61. Tighten oil pump body with six bolts.
Tightening Torque
(a): 25 Nm (2.5 kg.m, 18.0 ft. lbs.)
62. Wipe off and clean contacting surface between case and housing.
63. Apply sealant to transmission case as shown.
"A": Sealant 99000-31160 (SUZUKI BOND NO.1216)

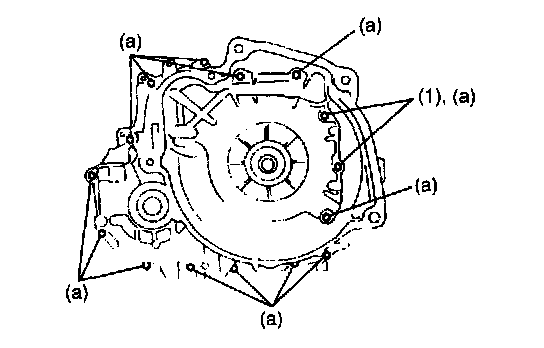

64. Tighten transmission housing to transmission case with bolts.
Tightening Torque
(a): 30 Nm (3.0 kg.m, 22.0 ft. lbs.)
NOTE: Check to make sure that new bolts are used for bolts indicated as (1) in figure.

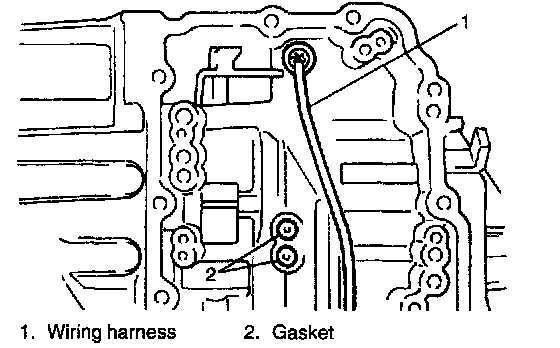

65. Insert wiring harness of solenoid connectors.
66. Coat two new gaskets with A/T fluid and place them as shown in figure.
67. While holding valve body assembly, connect manual valve to parking lock rod.

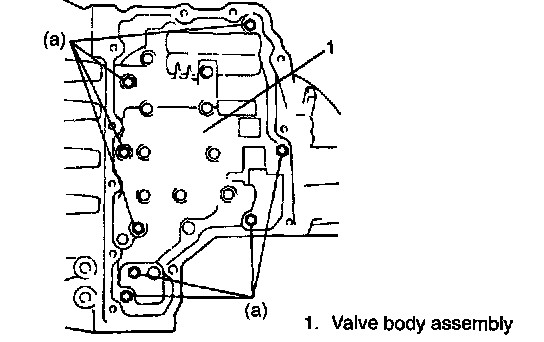

68. Tighten valve body assembly with bolts.
Tightening Torque
(a): 10 Nm (1.0 kg.m, 7.5 ft. lbs.)

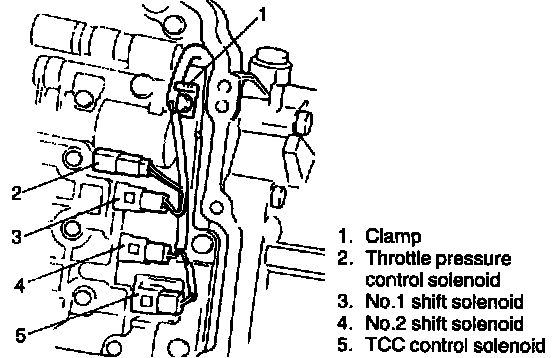

69. Clamp wiring harness of solenoid and A/T fluid temp. sensor.
70. Connect couplers of solenoid and install A/T fluid temp. sensor to its clamp.
NOTE:
- Check to make sure that couplers are connected properly (No.1 shift solenoid-white, No.2 shift solenoid-blue and lock-up control solenoid-yellow).
- There is an interchangeability between No.1 and No.2 shift solenoids for installation.
71. Wipe off and clean contacting surface between case and side cover.

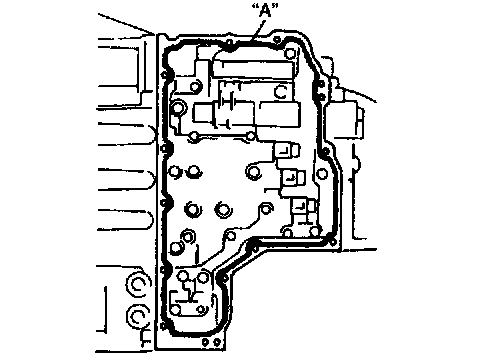

72. Apply sealant to transmission case as shown.
"A": Sealant 99000-31160 (SUZUKI BOND NO.1216)

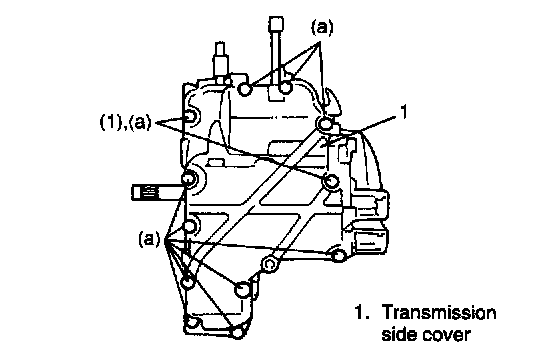

73. Tighten transmission side cover with bolts.
Tightening Torque
(a): 18 Nm (1.8 kg.m, 13.0 ft. lbs.)
NOTE: Check to make sure that new bolts are used for bolts indicated as (1) in figure.
74. Coat new O-rings with A/T fluid.
75. Tighten following parts (with new O-rings installed) with bolts.
- Solenoid coupler
- Vehicle speed sensor (A/T)
- Forward clutch cylinder revolution sensor
- Oil filler tube
Tightening Torque
(a): 5.5 Nm (0.55 kg.m, 4.0 ft. lbs.)
76. Coat new O-ring with A/T fluid.

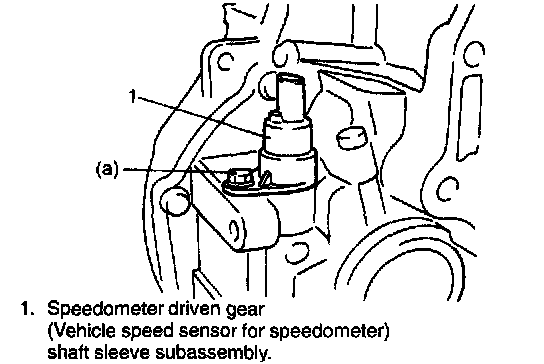

77. Tighten speedometer driven gear (vehicle speed sensor for speedometer) (with new O-ring installed with bolt.
Tightening Torque
(a): 5.5 Nm (0.55 kg.m, 4.0 ft. lbs.)

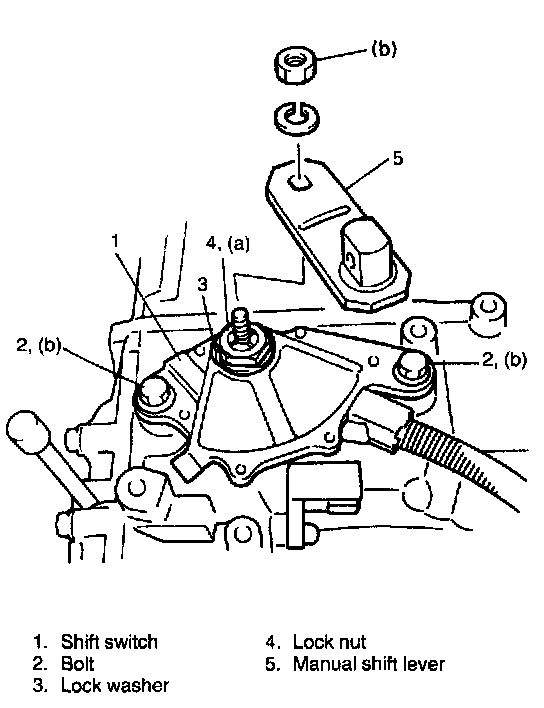

78. Install transmission range switch assembly.
a. Place new rubber plate and new lock washer or shift switch.
b. Tighten lock nut.
Tightening Torque
(a): 7.0 Nm (0.7 kg.m, 5.0 ft. lbs.)
c. Adjust transmission range switch.
d. Tighten transmission range switch bolts.
Tightening Torque
(b): 20 Nm (2.0 kg.m, 14.5 ft. lbs.)
e. Tighten manual shift lever with spring washer and nut.
Tightening Torque
(b): 20 Nm (2.0 kg.m, 14.5 ft. lbs.)

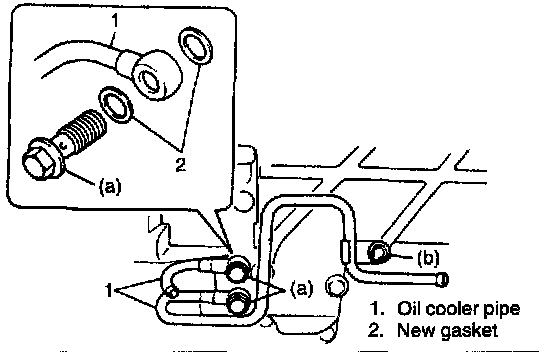

79. Install oil cooler pipes.
Tightening Torque
(a): 35 Nm (3.5 kg.m, 25.5 ft. lbs.)
(b): 18 Nm (1.8 kg.m, 13.0 ft. lbs.)
80. Measure starting torque of differential gear assembly. For detail, refer to step 2 on UNIT DISASSEMBLY.
Unit Disassembly

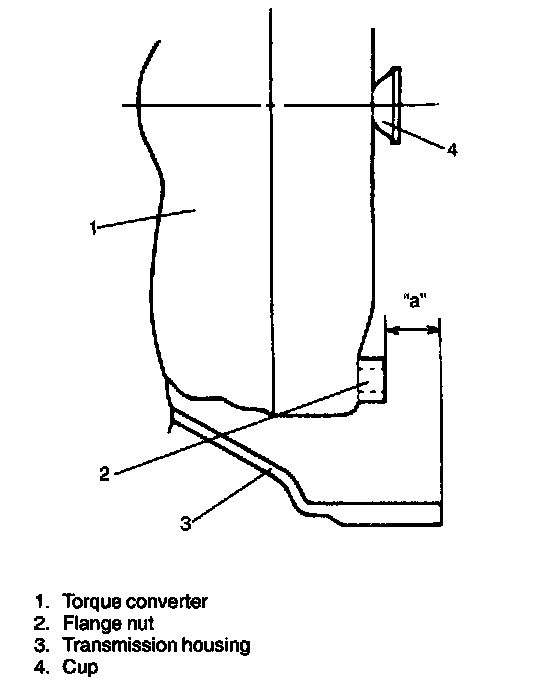

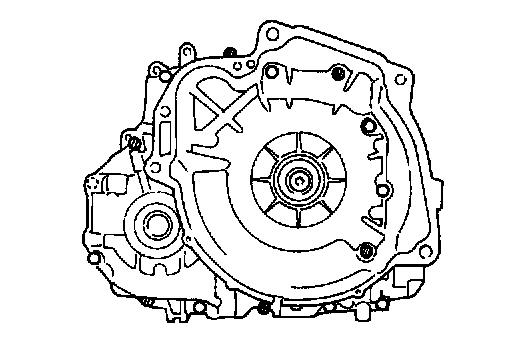

81. Install torque converter to input shaft.
a. Install torque converter, using care not to damage oil seal of oil pump.
b. After installing torque converter, check to make sure that distance "a" is within specification.
Distance "a": 23.60 - 25.46 mm (0.929 - 1.002 inch)
c. Check torque converter for smooth rotation.
CAUTION:
- Before installing converter, make sure that its pump hub portion is free from nicks, burrs or damage which may cause oil seal to leak.
- Be very careful not to drop converter on oil pump gear. Damage in gear, should it occur, may cause a critical trouble.
