Blower Motor: Service and Repair

Heater Blower Motor:




COMPONENTS




REMOVAL
1. Disconnect negative (-) cable at battery.
2. Disable air bag system. Refer to DISABLING AIRBAG SYSTEM.

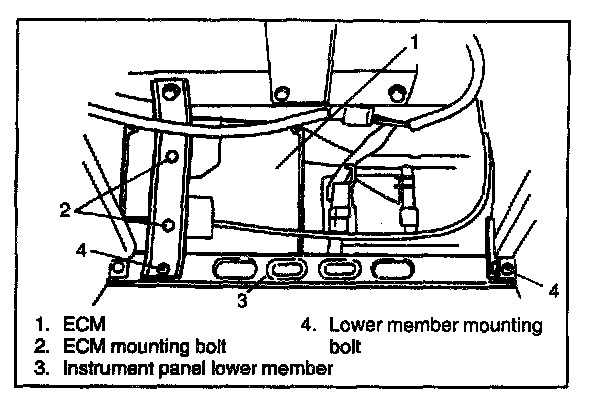

3. Remove grove box, ECM and instrument panel lower member.
4. Disconnect blower motor, heater resistor and heater blower motor relay lead wires at couplers.
5. Disconnect fresh air control cable from blower motor unit.

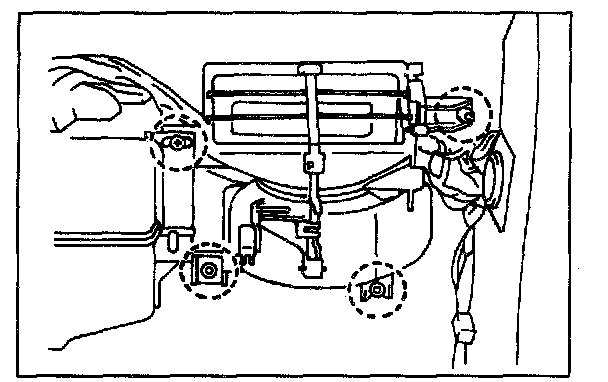

6. Remove blower motor unit.




INSTALLATION
1. Reverse removal procedure for installation.
2. Enable air bag system.
