Compressor Clutch Relay: Testing and Inspection

COMPRESSOR RELAY/CONDENSER FAN RELAY

1. Disconnect negative (-) cable at battery.
2. Disconnect its connector to remove relay out of position.

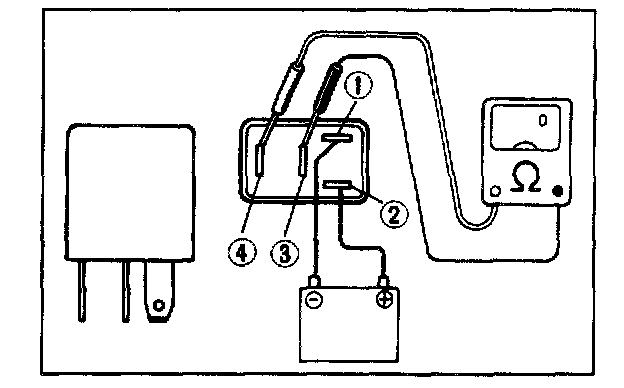

3. Wire as shown to check whether proper continuity is obtained between terminals (3) and (4).

If found defective with no continuity, replace relay.
