Compressor Inspection
-

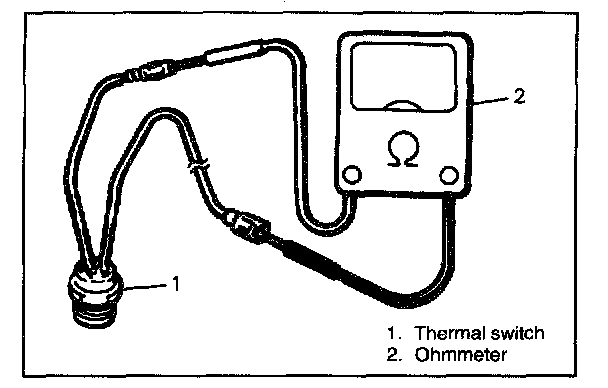

Use an ohmmeter to check thermal switch for continuity. If it is no continuity, replace it.
-
Check pressure plate and rotor for wear and oil soaked conditions respectively.
-
Check clutch bearing for noise, wear and grease leakage.
-

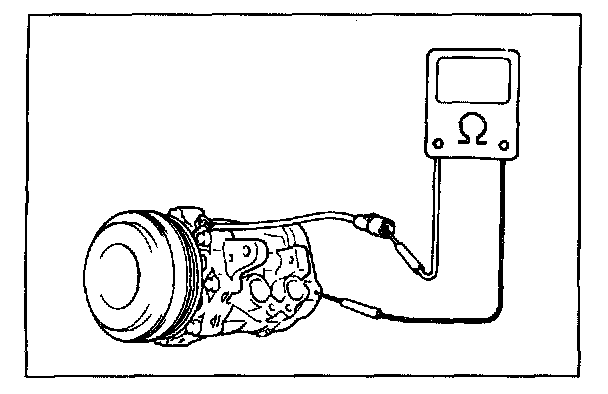

Measure stator coil for resistance at
20 °C (68 °F).
Standard Resistance:
2.9 - 3.8 ohm If the measured resistance does not remain within above tolerance, replace coil.
