Compressor Mount
1.
Check mounting bolt for looseness.
2.

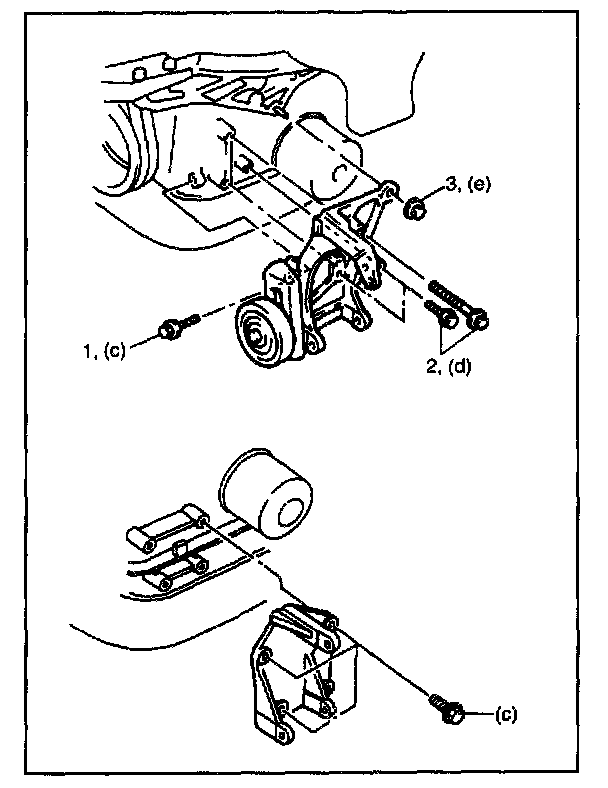

Check mounting bracket for crack or fracture. Retighten bolts by following sequence as indicated in figure.
Tightening Torque
c:
35 N.m (3.5 kg-m, 25.5 lb-ft) d:
65 N.m (6.5 kg-m, 47.0 lb-ft) e:
65 N.m (6.5 kg-m, 47.0 lb-ft)
