On Vehicle Service

ON-VEHICLE SERVICE

WARNING:
- Check to make sure that engine coolant temperature is cold before removing any part of cooling system.
- Also be sure to disconnect negative cable from battery terminal before removing any part.

COOLANT DRAINING
1. Remove radiator cap.

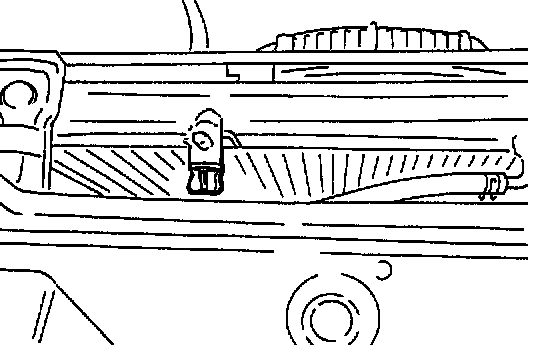

2. Loosen drain plug on radiator to drain coolant.
3. After draining coolant, be sure to tighten drain plug securely.
4. Fill cooling system.
Refer to "COOLANT" and steps 8. to 10.
